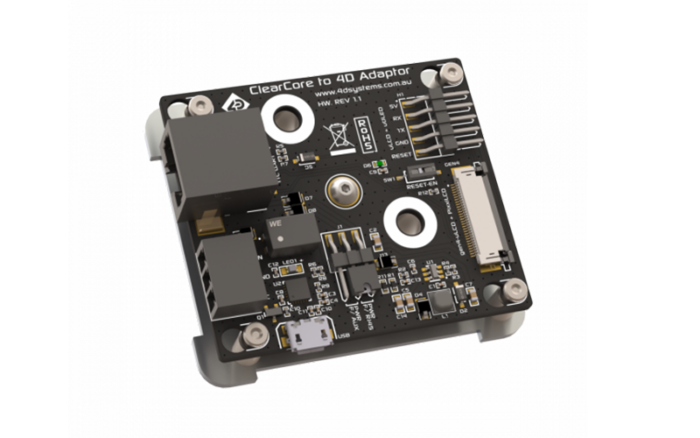

The 4D ClearCore Adaptor is an interfacing adaptor to enable easy connections between a Teknic Clearcore Industrial I/O Motion Controller, and a 4D Systems intelligent display, such as one of the gen4-uLCDuLCDuOLED and pixxiLCD ranges..

This 4D ClearCore Adaptor enables easy connections using standard cables provided by both companies, 4D Systems and Teknic.

The 4D Clearcore Adaptor is easy to mount and easy to use, with two options for how the connected display module can be powered via the Teknic ClearCore controller.

  • Teknic Website HERE.
  • ClearCore Product Page HERE.

For best results, it is recommended to program the Teknic ClearCore using the Arduino IDE and use the Teknic Arduino Wrapper.

  • This can be downloaded from the Teknic website HERE.
  • Teknic ClearCore Arduino Wrapper is available HERE.

In conjunction with this, it is recommended to use the genieArduino Arduino Library, paired with the Workshop4 IDE and its ViSi-Genie environment.

Information about 4D ClearCore Adaptor

  • Compatible with gen4-uLCD, uLCD, uOLED, and pixxiLCD display modules.
  • UART connection to the Teknic Clearcore using standard CAT style ethernet cable
  • Standard FFC or 5-way connection to 4D Systems intelligent displays
  • Capable of being powered off the ClearCore UART port (when used with 4.3” display and below), or via an Auxiliary connection to one of the spare GPIO ports on the Teknic Clearcore (power via the GPIO port), or direct to a 7-30VDC power supply.
  • On-board programmer to enable the connected 4D Display to be programmed via USB, without the need to unplug the display from this 4D Clearcore Adaptor.
  • Switch to enable or disable the RESET connection from the 4D display module to the Teknic ClearCore, allowing the ClearCore to hardware reset the display if and when desired.
  • Aluminium mounting base enables through-hole mounting of this 4D Clearcore Adaptor through 2 designated holes, using a variety of screws.
  • RoHS and REACH compliant.

Included in the box:

  • 4D ClearCore Adaptor – mounted on an aluminum mounting frame.
  • 3-way screw terminal connector, inserted into the 4D ClearCore Adaptor 3-way AUX connector.

Items NOT included:

  • CAT5 cable for connecting to ClearCore.
  • 30-way FFC, 30-to-15-way FPC, or 5-way cable. These are included with 4D Systems display modules.
  • microUSB Cable.

SPECIFICATIONS

Operating Ambient Temperature

-20°C to +70°C

Storage Temperature

-30°C to +80°C

Connector

5 pin / 30 pin FFC / CAT

Module Dimensions (mm)

64 x 56 x 22.8

RoHS

Yes

Country of origin

Australia

CCCN / tarif code

85423100

ECCN export control code

EAR99

TARIC Code

8542310000

AHECC Code

85423100

Package Dimensions L x W x H (mm)

105 x 75 x 37

Product Weight (g)

46

Weight with Packaging (g)

82

REACH

Yes

CE Mark

Yes

Codeless Programming

Yes

IDE

4D Workshop4 IDE

SIZE & WEIGHT

Viewing Area: N/A

Module Width: 64 mm

Module Height: 56 mm

Module Depth: 22.8 mm

Module Weight: 46 g

WORKSHOP4 IDE

Workshop4 is a comprehensive software IDE for Microsoft Windows that provides an integrated software development platform for all of the 4D family of processors and modules. The IDE combines the Editor, Compiler, Linker and Downloader to develop complete 4DGL application code.

All user application code is developed within the Workshop4 IDE.

DEVELOPMENT ENVIRONMENTS THAT SUITS ANY APPLICATION & USER LEVEL

Workshop4 includes four development environments for the user to choose based on application requirements or even user skill level.

WORKSHOP4 PRO

Make complex widget design, simple.

Smart Widgets Editor is a powerful utility which enables the generation of Smart Widgets.

  • Users can create complex widgets with up to six layers, including the layer for the base image. The order of the layers can be arranged as desired.
  • Each layer can contain one or more images arranged in sequence that can be manipulated in a variety of ways. Image manipulation options include horizontal motion, vertical motion, and angular motion. Additionally, the transparency of a layer can be set.
  • Two or more layers can be linked to produce synchronized movements of images. This enables the generation of complex widgets with multiple moving parts. Clockwork feature is also supported. This enables users to quickly generate clock widgets.
  • Each layer can have a numeric part which can display numbers in various fonts and formats. Alternatively, the numeric part can be a fixed sequence of text.
  • The output frames can be utilized using any of the supported Workshop4 environments.

GENIE MAGIC

Genie Magic is an extension to ViSi-Genie, which is available in Workshop4 PRO. Genie Magic allows the User to add 4DGL code to various points in the ViSi-Genie backend code, which allows Users to take full advantage of the power of 4DGL, while retaining the speed and convenience of ViSi-Genie and its defined communication protocol.

Genie Magic allows you to enter 4DGL code in the form of Events, Code and Objects, along with various touch related additions too, giving you to the power to achieve advanced GUI’s in ViSi-Genie without having to write the full code yourself.

Genie Magic is fully supported by the genieArduino and geniePi libraries, making communication with an Arduino or Raspberry Pi host even more powerful.

When using Genie Magic in combination with the Smart Widget Editor, it is possible to use the Smart Widgets Editor tool and Smart Widgets to create other graphical user interface elements such as:

  • Dropdown Menu

  • Side Menu

  • ‘Carousel Slider’

  • List Box

  • Dock Menu
  • Quarter-Rotary Menu

  • Fading Slide-To-Unlock Button

  • Spectrum With Transparency

  • And Many Others

DOWNLOADS

Compatibility: Workshop4 is a Windows-only product. It is compatible with Windows 8 through to Windows 11.

Note some older OS such as ME, Vista, XP and 7 have not been tested for some time and are not supported by Microsoft anymore; however, they may still work.
Legacy support updates for the older OS may not be possible, depending on what issues are found. For best results, run a current Windows OS. It is possible to run Workshop4 under a VM on Linux or Mac. However, it is up to the User to set this up.

RFQ – VOLUME ORDERS

We are delighted to offer volume discounts to qualified customers and organizations.

Our dedicated Volume Sales team will address your specific requirements and help you get an accurate quotation in a timely manner.

Order Now

4D-CLEARCORE-ADAPTOR

  • Interface adaptor for easy connection between Teknic Clearcore Industrial I/O Motion Controller and 4D Systems Intelligent Display Modules.
