microLCD Series
Multiple sizes and shapes, vibrant touchscreen displays, extensive programmability, and versatile design software.

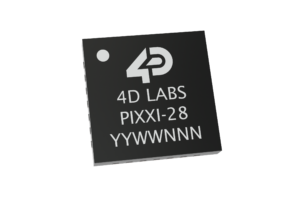

Powered by 4D LABS Processors

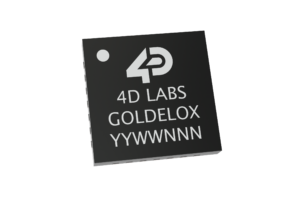

The microLCD Series employs a range of proprietary processors from 4D Systems to deliver intelligent display capabilities. The smaller uLCD-144-G2 utilizes the GOLDELOX processor, providing fundamental graphics and text functions. Mid-sized displays like the uLCD-24PTU, uLCD-28PTU, and uLCD-32PTU are powered by the PICASO processor, offering enhanced graphics, touch input, and multimedia support. Larger models, including the uLCD-35DT, uLCD-43D series, uLCD-70D series, uLCD-90D series, and uLCD-104D series, integrate the DIABLO-16 processor, which delivers advanced graphics processing, increased memory, and higher performance for complex applications.
microLCD Series – Available Models
SKU | Size (inches) | Resolution | Brightness (cd/m2) | Touch | Cover Lens Bezel | Processor | Viewing Area (mm) | Dimensions (mm) | External memory | Datasheet | Downloads |
---|---|---|---|---|---|---|---|---|---|---|---|
uLCD-144-G2 | 1,44 | 128x128 | 200 | GOLDELOX | 25.5 x 26.5 | 31.00 x 36.20 x 14.00 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/goldelox/uLCD-144-G2/ | https://resources.4dsystems.com.au/downloads/goldelox/uLCD-144G2/ | ||
uLCD-144P2 (uSD) | 1,44 | 128x128 | 200 | PIXXI-28 | 25.5 x 26.5 | 31.00 x 36.20 x 14.00 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/pixxi28/uLCD-144P2/ | https://resources.4dsystems.com.au/downloads/pixxi28/uLCD-144P2/ | ||
uLCD-144P2 (Flash) | 1,44 | 128x128 | 200 | PIXXI-28 | 25.5 x 26.5 | 31.00 x 36.20 x 14.00 | 16MB Flash | https://resources.4dsystems.com.au/datasheets/pixxi28/uLCD-144P2/ | https://resources.4dsystems.com.au/downloads/pixxi28/uLCD-144P2/ | ||
uLCD-480RD-CLB | 2,10 (round) | 480x480 | 500 | Yes | DIABLO | 53.28 | 80.0 x 80.0 x 8.5 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/diablo16/uLCD-480RD/ | https://resources.4dsystems.com.au/downloads/diablo16/uLCD-480RD-Series/ | |
uLCD-480RD-CTP-CLB | 2,10 (round) | 480x480 | 500 | Capacitive | Yes | DIABLO | 53.28 | 80.0 x 80.0 x 8.5 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/diablo16/uLCD-480RD/ | https://resources.4dsystems.com.au/downloads/diablo16/uLCD-480RD-Series/ |
uLCD-24PTU | 2,40 | 240x320 | 200 | Resistive | PICASO | 36.7 x 49.0 | 44.90 x 62.40 x 16.10 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/picaso/uLCD-24PTU/ | https://resources.4dsystems.com.au/downloads/picaso/uLCD-24PTU/ | |
uLCD-28PTU | 2,80 | 240x320 | 220 | Resistive | PICASO | 57.6 x 43.2 | 52.00 x 72.00 x 16.00 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/picaso/uLCD-28PTU/ | https://resources.4dsystems.com.au/downloads/picaso/uLCD-28PTU/ | |
uLCD-32PTU | 3,20 | 240x320 | 220 | Resistive | PICASO | 64.8 x 48.6 | 54.30 x 77.70 x 17.00 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/picaso/uLCD-32PTU/ | https://resources.4dsystems.com.au/downloads/picaso/uLCD-32PTU/ | |
uLCD-35DT | 3,50 | 320x480 | 216 | Resistive | DIABLO | 73.4 x 49.0 | 56.90 x 97.60 x 15.80 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/diablo16/uLCD-35DT/ | https://resources.4dsystems.com.au/downloads/diablo16/uLCD-35DT/ | |
uLCD-43D | 4,30 | 480x272 | 500 | DIABLO | 95.04 x 53.86 | 67.10 x 105.40 x 16.20 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/diablo16/uLCD-43D-series/ | https://resources.4dsystems.com.au/downloads/diablo16/uLCD-43D/ | ||
uLCD-43DT | 4,30 | 480x272 | 500 | Resistive | DIABLO | 95.04 x 53.86 | 67.10 x 105.40 x 16.20 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/diablo16/uLCD-43D-series/ | https://resources.4dsystems.com.au/downloads/diablo16/uLCD-43DT/ | |
uLCD-43DCT | 4,30 | 480x272 | 500 | Capacitive | DIABLO | 95.04 x 53.86 | 67.10 x 105.40 x 16.20 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/diablo16/uLCD-43D-series/ | https://resources.4dsystems.com.au/downloads/diablo16/uLCD-43DCT/ | |
uLCD-70DT | 7,00 | 800x480 | 280 | Resistive | DIABLO | 154.08 x 85.92 | 179.90 x 100.00 x 15.50 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/diablo16/uLCD-70D-series/ | https://resources.4dsystems.com.au/downloads/diablo16/uLCD-70DT/ | |
uLCD-90DT | 9,00 | 800 x 480 | 450 | Resistive | DIABLO | 198 x 111.7 | 230.7 x 126.4 x 7.90 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/diablo16/uLCD-90D-series/ | https://resources.4dsystems.com.au/downloads/diablo16/uLCD-90DT/ | |
uLCD-90DCT | 9,00 | 800 x 480 | 475 | Capacitive | DIABLO | 198 x 111.7 | 230.7 x 126.4 x 8.15 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/diablo16/uLCD-90D-series/ | https://resources.4dsystems.com.au/downloads/diablo16/uLCD-90DCT/ | |
uLCD-90DCT-CLB | 9,00 | 800 x 480 | 475 | Capacitive | Yes | DIABLO | 198 x 111.7 | 235 x 148.7 x 8.3 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/diablo16/uLCD-90D-series/ | https://resources.4dsystems.com.au/downloads/diablo16/uLCD-90DCT-CLB/ |
uLCD-104D | 10,40 | 1024 x 100 | 950 | DIABLO | 264.19 x 25.80 | 274.92 x 55.5x16.8 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/diablo16/uLCD-104D-series/ | https://resources.4dsystems.com.au/downloads/diablo16/uLCD-104D/ | ||
uLCD-104DCT | 10,40 | 1024 x 100 | 855 | Capacitive | DIABLO | 264.19 x 25.80 | 274.92 x 55.5x18.8 | SD Card Slot | https://resources.4dsystems.com.au/datasheets/diablo16/uLCD-104D-series/ | https://resources.4dsystems.com.au/downloads/diablo16/uLCD-104DCT/ |
