200mm Long, 30-way FFC cable for GEN4 and uLCD products

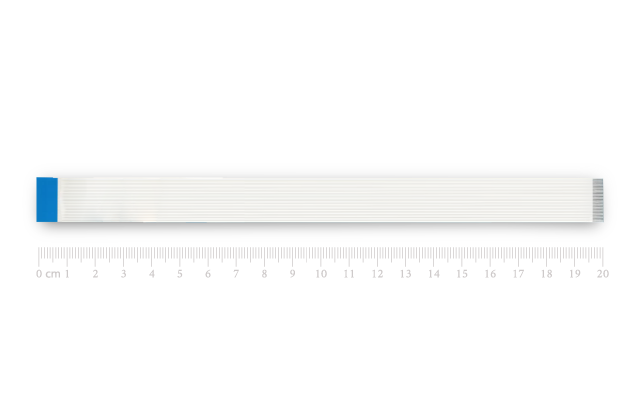

200 mm Long, 30-way FFC with 0.5mm pitch (Opposite way), 30 Pin Flexible Flat Cable.

Compatible with a standard 30-pin, 0.5mm pitch, 0.3mm thick FFC, FFC connector. This cable on one end has contacts on the top of the cable, and the other end has contacts at the bottom of the cable.

The 4D-FFC-200 cable, 50 mm longer in length is an alternative to the standard  4D-FFC-150 cable which comes with all GEN4 product ranges such as the gen4-ulcd, gen4-4DCAPE, gen4-4DPI, and also the uLCD-90 products.

Information about this product

  • 30 Pin Flexible Flat Cable, 200mm Long, 0.5mm (0.02″) pitch
  • Cable Type: AWM 20624 80C 60V VW-1
  • Heat Resistance 80 Degrees Celsius
  • Connections on the opposite side at each end (Type B)

SPECIFICATIONS

Operating Ambient Temperature

80 Degrees Celsius

Country of origin

China

CCCN / tarif code

85423109

ECCN export control code

EAR99

TARIC Code

8542319000

AHECC Code

85423109

WORKSHOP4 IDE

Workshop4 is a comprehensive software IDE for Microsoft Windows that provides an integrated software development platform for all of the 4D family of processors and modules. The IDE combines the Editor, Compiler, Linker and Downloader to develop complete 4DGL application code.

All user application code is developed within the Workshop4 IDE.

DEVELOPMENT ENVIRONMENTS THAT SUITS ANY APPLICATION & USER LEVEL

Workshop4 includes four development environments for the user to choose based on application requirements or even user skill level.
