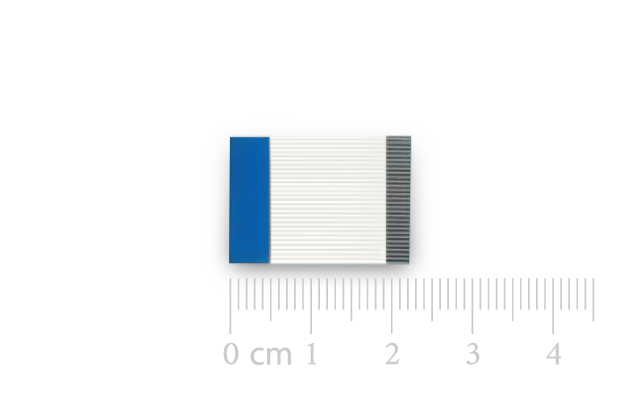

22mm Long 30-way FFC cable
22mm long 30-way FFC with 0.5mm pitch, 30 Pin Flexible Flat Cable Compatible with a standard 30-pin, 0.5mm pitch, 0.3mm thick FFC, FFC connector. This cable on one end has contacts on the top of the cable, and the other end has contacts at the bottom of the cable. The 4D-FFC- 22 cables can be used for MOTG-AC modules such as the MOTG-AC1 and MOTG-AC3.
Information about this product
- 30 Pin Flexible Flat Cable, 22 mm Long, 0.5mm (0.02″) pitch
- Cable Type: AWM 20624 80C 60V VW-1
- Heat Resistance 80 Degrees Celsius
- Connections on the opposite side at each end (Type B)
SPECIFICATIONS
| Operating Ambient Temperature | 80 Degrees Celsius |
|---|---|
| Country of origin | China |
| CCCN / tarif code | 85423109 |
| ECCN export control code | EAR99 |
| TARIC Code | 8542319000 |
| AHECC Code | 85423109 |
SIZE & WEIGHT
Viewing Area: N/A
Module Width: 22 mm
Module Height: N/A
Module Depth: N/A
Module Weight: N/A
WORKSHOP4 IDE
Workshop4 is a comprehensive software IDE for Microsoft Windows that provides an integrated software development platform for all of the 4D family of processors and modules. The IDE combines the Editor, Compiler, Linker and Downloader to develop complete 4DGL application code.
All user application code is developed within the Workshop4 IDE.
DEVELOPMENT ENVIRONMENTS THAT SUITS ANY APPLICATION & USER LEVEL
Workshop4 includes four development environments for the user to choose based on application requirements or even user skill level.
Designer
Visi
Visi-Genie
Serial
WORKSHOP4 PRO
Make complex widget design, simple.
Smart Widgets Editor is a powerful utility which enables the generation of Smart Widgets.
GENIE MAGIC
Genie Magic is an extension to ViSi-Genie, which is available in Workshop4 PRO. Genie Magic allows the User to add 4DGL code to various points in the ViSi-Genie backend code, which allows Users to take full advantage of the power of 4DGL, while retaining the speed and convenience of ViSi-Genie and its defined communication protocol.
Genie Magic allows you to enter 4DGL code in the form of Events, Code and Objects, along with various touch related additions too, giving you to the power to achieve advanced GUI’s in ViSi-Genie without having to write the full code yourself.
Genie Magic is fully supported by the genieArduino and geniePi libraries, making communication with an Arduino or Raspberry Pi host even more powerful.
When using Genie Magic in combination with the Smart Widget Editor, it is possible to use the Smart Widgets Editor tool and Smart Widgets to create other graphical user interface elements such as:
DOWNLOADS
Compatibility:
Workshop4 is a Windows-only product. It is compatible with Windows 8 through to Windows 11.
Note some older OS such as ME, Vista, XP and 7 have not been tested for some time and are not supported by Microsoft anymore; however, they may still work.
Legacy support updates for the older OS may not be possible, depending on what issues are found. For best results, run a current Windows OS.
It is possible to run Workshop4 under a VM on Linux or Mac. However, it is up to the User to set this up.
