4D Serial Pi Adaptor

  • Easily connect almost any 4D Systems Intelligent Display Module to the Raspberry Pi

US$9.95

WHY CHOOSE 4D SYSTEMS?

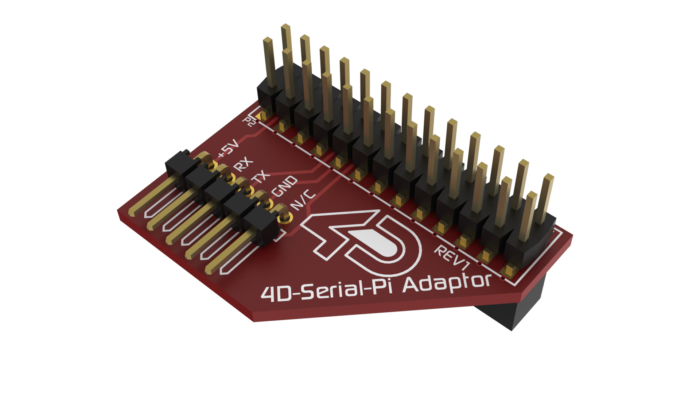

The 4D Serial Pi Adaptor is a simple adaptor board designed to provide a serial interface in a convenient form-factor, enabling the Raspberry Pi to connect to a majority of the 4D System display modules with a single 5 pin connection.

The 4D Serial Pi Adaptor features a pass through header design, enabling existing Raspberry Pi products to connect to the Raspberry Pi, as if this adaptor was not installed. The 4D Serial Pi Adaptor utilises only the serial port on the Raspberry Pi.

This adaptor is included in the 4D Systems -PI Packs, also found in this category.

Information about the 4D Serial Pi Adaptor

  • Direct IO connection to the Raspberry Pi
  • Simple 5 pin serial interface for 4D System display modules
  • Raspberry Pi supplied 5V power for Display Module
  • Comes with 5 wire ribbon cable if ordered without a display module. Display module itself includes a 5 wire ribbon cable (this is not the programming cable).
  • Compatible with Raspberry Pi A, B and B+, Pi2, Pi3, Pi4, Zero, Zero W, etc. (Does not use the full width of the header on B+/Pi2/Pi3/Pi4 etc.)

4D Serial Pi Adaptor includes the following items:

  • 4D Serial Pi Adaptor
  • 150mm 5 way Female-Female jumper cable
  • 5 way Male-Male adaptor

SPECIFICATIONS

Operating Ambient Temperature

-20°C to +70°C

Storage Temperature

-30°C to +80°C

RoHS?

Yes

Country of origin

Australia

CCCN / tarif code

85423109

ECCN export control code

EAR99

TARIC Code

8542319000

AHECC Code

85423109

Package Dimensions L x W x H (mm)

70 x 50 x 30

Product Weight (g)

23

Weight with Packaging (g)

40

REACH

Yes

CE Mark

Yes

Supply Voltage

4.5V-5.5V DC

SIZE & WEIGHT

Viewing Area: N/A

Module Width: N/A

Module Height: N/A

Module Depth: N/A

Module Weight: 23 g

WORKSHOP4 IDE

Workshop4 is a comprehensive software IDE for Microsoft Windows that provides an integrated software development platform for all of the 4D family of processors and modules. The IDE combines the Editor, Compiler, Linker and Downloader to develop complete 4DGL application code.

All user application code is developed within the Workshop4 IDE.

DEVELOPMENT ENVIRONMENTS THAT SUITS ANY APPLICATION & USER LEVEL

Workshop4 includes four development environments for the user to choose based on application requirements or even user skill level.

WORKSHOP4 PRO

Make complex widget design, simple.

Smart Widgets Editor is a powerful utility which enables the generation of Smart Widgets.

  • Users can create complex widgets with up to six layers, including the layer for the base image. The order of the layers can be arranged as desired.
  • Each layer can contain one or more images arranged in sequence that can be manipulated in a variety of ways. Image manipulation options include horizontal motion, vertical motion, and angular motion. Additionally, the transparency of a layer can be set.
  • Two or more layers can be linked to produce synchronized movements of images. This enables the generation of complex widgets with multiple moving parts. Clockwork feature is also supported. This enables users to quickly generate clock widgets.
  • Each layer can have a numeric part which can display numbers in various fonts and formats. Alternatively, the numeric part can be a fixed sequence of text.
  • The output frames can be utilized using any of the supported Workshop4 environments.

GENIE MAGIC

Genie Magic is an extension to ViSi-Genie, which is available in Workshop4 PRO. Genie Magic allows the User to add 4DGL code to various points in the ViSi-Genie backend code, which allows Users to take full advantage of the power of 4DGL, while retaining the speed and convenience of ViSi-Genie and its defined communication protocol.

Genie Magic allows you to enter 4DGL code in the form of Events, Code and Objects, along with various touch related additions too, giving you to the power to achieve advanced GUI’s in ViSi-Genie without having to write the full code yourself.

Genie Magic is fully supported by the genieArduino and geniePi libraries, making communication with an Arduino or Raspberry Pi host even more powerful.

When using Genie Magic in combination with the Smart Widget Editor, it is possible to use the Smart Widgets Editor tool and Smart Widgets to create other graphical user interface elements such as:

  • Dropdown Menu

  • Side Menu

  • ‘Carousel Slider’

  • List Box

  • Dock Menu
  • Quarter-Rotary Menu

  • Fading Slide-To-Unlock Button

  • Spectrum With Transparency

  • And Many Others

DOWNLOADS

Compatibility:

Workshop4 is a Windows-only product. It is compatible with Windows 8 through to Windows 11.

Note some older OS such as ME, Vista, XP and 7 have not been tested for some time and are not supported by Microsoft anymore; however, they may still work.
Legacy support updates for the older OS may not be possible, depending on what issues are found. For best results, run a current Windows OS.

It is possible to run Workshop4 under a VM on Linux or Mac. However, it is up to the User to set this up.

Order Now

4D Serial Pi Adaptor

  • Easily connect almost any 4D Systems Intelligent Display Module to the Raspberry Pi
Request a quote

We are delighted to offer volume discounts to qualified customers and organisations.

Request a quote

Starter Kits and Accessories

  • SK-32PTU-PI Starter Kit for Raspberry Pi projects

    This Starter Kit includes everything you need to integrate the uLCD-32PT into any Raspberry Pi project, and it is ideal for first-time users. The SK-32PTU-PI Starter Kit includes:
    • uLCD-32PT
    • 4D Serial Pi Adaptor
    • 4GB Industrial microSD Card
    • 150mm 5 way female jumper cable with 5 way Male-Male adaptor

    US$114.95

  • SK-28PTU-PI Starter Kit for Raspberry Pi projects

    This Starter Kit includes everything you need to integrate the uLCD-28PTU into any Raspberry Pi project, and it is ideal for first-time users. The SK-28PTU-PI Starter Kit includes:
    •  uLCD-28PTU
    • 4D Serial Pi Adaptor
    • uUSB-PA5-II
    • 4GB Industrial microSD Card
    • 5-way female-to-female ribbon cable with male-to-male adaptor.

    US$99.95

  • SK-24PTU-PI Starter Kit for Raspberry Pi projects

    This Starter Kit includes everything you need to integrate the uLCD-24PTU into any Raspberry Pi project, and it is ideal for first-time users. The SK-24PTU-PI Starter Kit includes:
    • uLCD-24PTU
    • 4D Serial Pi Adaptor
    • uUSB-PA5-II
    • 4GB Industrial microSD Card
    • 150mm 5 way female jumper cable with 5 way Male-Male adaptor

    US$89.95
