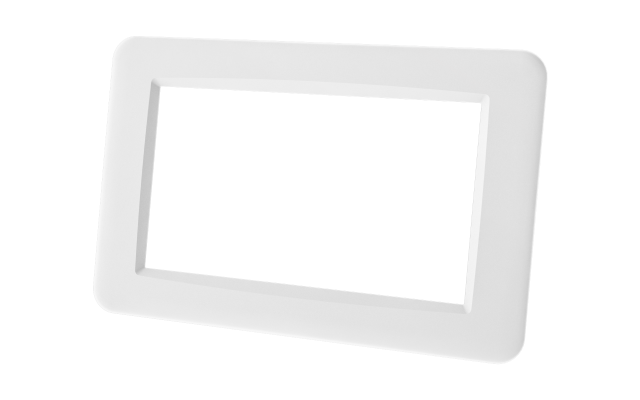

4D Display Bezels
4D Systems has designed and developed three ABS plastic bezels to facilitate mounting and settling of units when using 4D Systems intelligent display modules.
The 4DBEZEL-43W (White) is suitable to use with the uLCD-43PT, uLCD-43DT, uLCD-43DCT (additional spacers required. Not included with Bezel), 4DLCD-FT843 and Armadillo-43T Intelligent Display Modules.
These bezels provide not only a sleek cover to 4D Systems display modules but also an easy method to panel mount the display module into a secure enclosure. Spring clips attach to the bezel in four locations to tightly hold onto enclosure or wall panel. This offers a range of panel thickness from 1mm to 2.5mm without the need to add washers.
NOTE: These Bezels are not intended to be used with the gen4 Series of Display modules and are not guaranteed to work with displays of similar size from other manufacturers. For Bezels to use with the gen4 Series of Intelligent Displays look for the gen4-Bezel range.
This bezel is designed for indoor use only. It is not weather-sealed, nor does it bear any Ingress Protection (IP) rating. Use indoor with care–preferably in a clean environment as the bezel offers little protection to the circuitry against moisture or particles.
Information about the BEZEL
- ABS plastic bezels for use with:
- uLCD-43PT Intelligent Display Module
- uLCD-43DT Intelligent Display Module
- uLCD-43DCT Intelligent Display Module (additional spacers required. Not included with Bezel)
- 4DLCD-FT843 Embedded SPI Display
- Armadillo-43T Linux based Display Module
- Provide a simple method to panel mount the display modules, and provide a finished look to the surround of the display
- Simple cut-out required, no mounting holes required to be drilled in the panel for screws
- Brass mounting inserts in the rear of the bezel to secure and durable fastening
- Spring Clips for attaching the bezel to the panel (Qty depends on size)
- M2 mounting screws and washers included
The 4DBEZEL-43-W includes the following items:
- 4.3″ Bezel (White Colour)
- 4 Spring Clips
- 8 Mounting Screws
- 8 Mounting Washers
SPECIFICATIONS
| Diagonal Display Size INCHES | 4.3 |
|---|---|
| Touch | N/A |
| Operating Ambient Temperature | N/A |
| Module Dimensions (mm) | 129.40 x 84.40 x 4.40 |
| RoHS? | Yes |
| Country of origin | Australia |
| CCCN / tarif code | 39269090 |
| ECCN export control code | EAR99 |
| TARIC Code | 3926300090 |
| AHECC Code | 39269090 |
| Product Weight (g) | 20 |
| Weight with Packaging (g) | 20 |
| REACH | Yes |
| CE Mark | Yes |
SIZE & WEIGHT
Viewing Area: N/A
Module Width: 129.40 mm
Module Height: 84.40 mm
Module Depth:4.40 mm
Module Weight: 20 g
WORKSHOP4 IDE
Workshop4 is a comprehensive software IDE for Microsoft Windows that provides an integrated software development platform for all of the 4D family of processors and modules. The IDE combines the Editor, Compiler, Linker and Downloader to develop complete 4DGL application code.
All user application code is developed within the Workshop4 IDE.
DEVELOPMENT ENVIRONMENTS THAT SUITS ANY APPLICATION & USER LEVEL
Workshop4 includes four development environments for the user to choose based on application requirements or even user skill level.
Designer
Visi
Visi-Genie
Serial
WORKSHOP4 PRO
Make complex widget design, simple.
Smart Widgets Editor is a powerful utility which enables the generation of Smart Widgets.
GENIE MAGIC
Genie Magic is an extension to ViSi-Genie, which is available in Workshop4 PRO. Genie Magic allows the User to add 4DGL code to various points in the ViSi-Genie backend code, which allows Users to take full advantage of the power of 4DGL, while retaining the speed and convenience of ViSi-Genie and its defined communication protocol.
Genie Magic allows you to enter 4DGL code in the form of Events, Code and Objects, along with various touch related additions too, giving you to the power to achieve advanced GUI’s in ViSi-Genie without having to write the full code yourself.
Genie Magic is fully supported by the genieArduino and geniePi libraries, making communication with an Arduino or Raspberry Pi host even more powerful.
When using Genie Magic in combination with the Smart Widget Editor, it is possible to use the Smart Widgets Editor tool and Smart Widgets to create other graphical user interface elements such as:
DOWNLOADS
Compatibility:
Workshop4 is a Windows-only product. It is compatible with Windows 8 through to Windows 11.
Note some older OS such as ME, Vista, XP and 7 have not been tested for some time and are not supported by Microsoft anymore; however, they may still work.
Legacy support updates for the older OS may not be possible, depending on what issues are found. For best results, run a current Windows OS.
It is possible to run Workshop4 under a VM on Linux or Mac. However, it is up to the User to set this up.
Order Now
- White ABS Plastic Bezel for the uLCD-43PT, uLCD-43DT, uLCD-43DCT (additional spacers required. Not included with Bezel), 4DLCD-FT843 and Armadillo-43T Display Modules.
- Provides a mounting solution and professional appearance for Panels and enclosures.
- For indoor use only.
