4.3″Display Cape for the BeagleBone Black

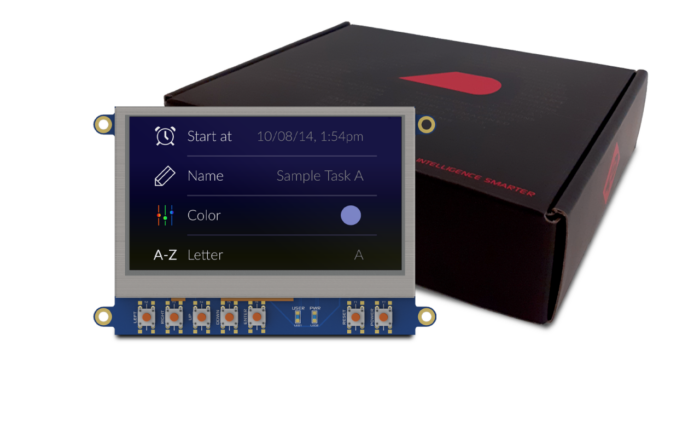

The 4DCAPE-43 is specifically designed for the Beagle Bone Black (BBB), which provides a 4.3″ display for the BBB for direct user interaction and information display. Available in both touch (4DCAPE-43T) and non-touch (4DCAPE-43), the CAPE conveniently features a 4.3″ TFT LCD 480×272 resolution display and seven push buttons.

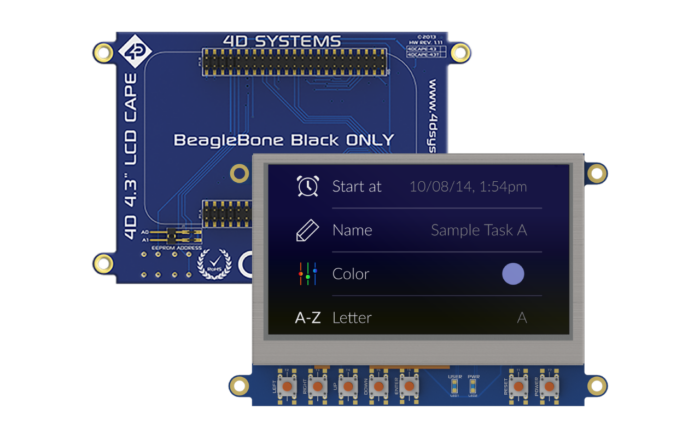

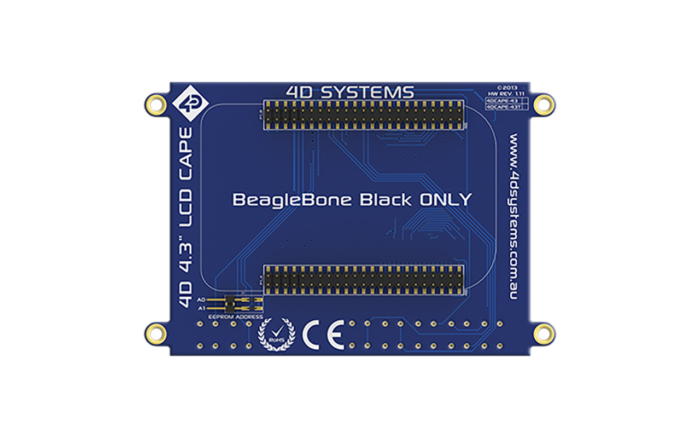

The Beagle Bone Black connects directly to the back of the 4DCAPE-43, and provides everything the CAPE requires such as power and display signals. It also includes 4 mounting holes for easy panel/enclosure mounting.

Please note that the 4DCAPE-43 is designed to be the primary display for Beagle Bone Black only and cannot be programmed using 4D Systems Workshop 4 IDE.

ANNOUNCEMENTS

NOT RECOMMENDED FOR NEW DESIGNS

Please contact Sales for Questions/Concerns

Please refer to our gen4 range for alternate products

Information about the display module

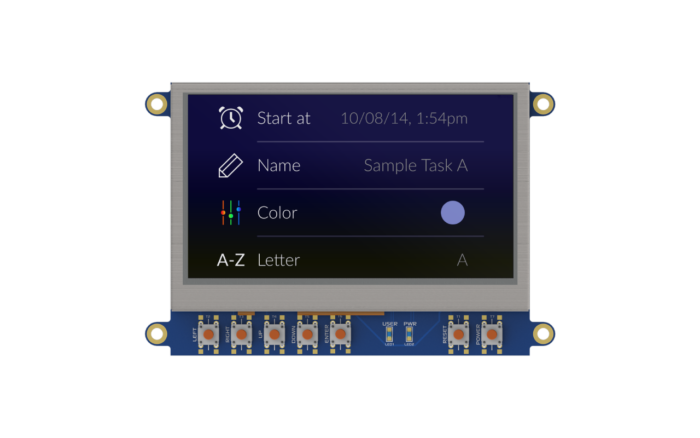

  • 4.3″ TFT LCD Display, 480×272 Resolution
  • 7 push buttons, including LEFT, RIGHT, UP, DOWN, ENTER, RESET and POWER
  • 2 LEDs, one to indicate Power and one for User, which could be configured as required
  • Fully compatible with existing drivers already written for the Beagle Bone.
  • Comes in 2 versions:
    • 4DCAPE-43 (Non Touch version)
    • 4DCAPE-43T (Resistive Touch version)
  • 3.5mm mounting holes, enabling standard M3 screws/bolts to fasten the display to an enclosure, panel or an alternative mounting solution
  • Powered directly from the Beagle Bone Black, no additional power required

The 4DCAPE-43 includes the following items:

  • 4DCAPE-43 Display Module

SPECIFICATIONS
