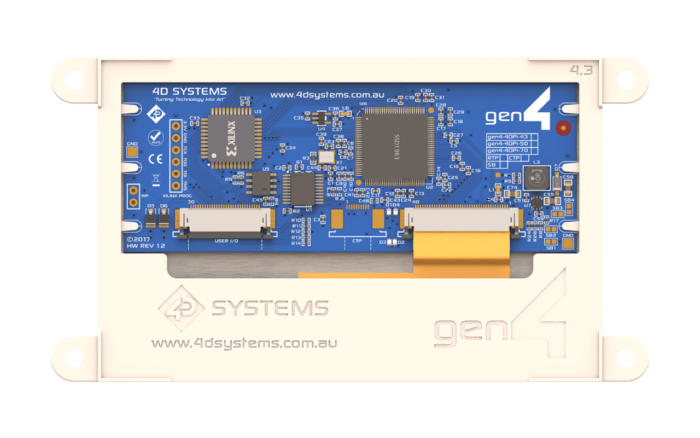

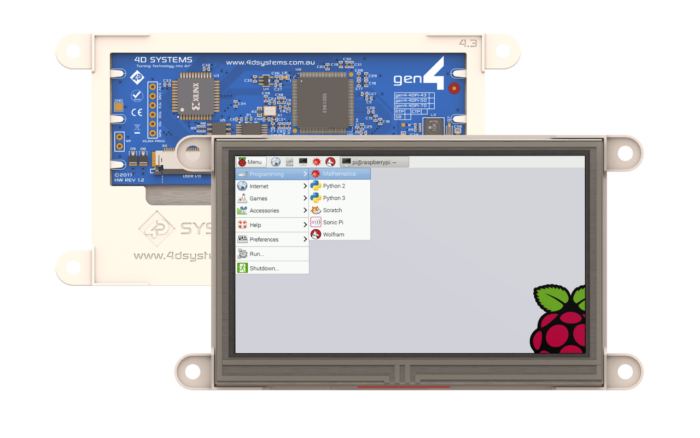

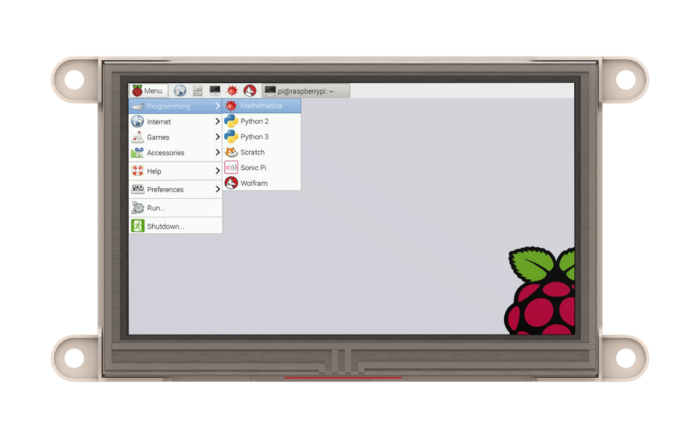

4.3″ Gen4 Primary Display for the Raspberry Pi
Communication between the gen4-4DPi and the Raspberry Pi is interfaced with a high speed 48Mhz SPI connection, which utilises an on-board processor for direct command interpretation and SPI communication compression, and features a customised DMA enabled kernel. This combination allows this display to output high frame rate compared to other SPI display solutions, when displaying a typical image/video, and can achieve higher depending if the image can be compressed.
The gen4-4DPi is designed to work with the Raspbian Operating System running on the Raspberry Pi, as that is the official Raspberry Pi operating system. It is also compatible with Pixel and Scratch.
The gen4-4DPi range connects to the Raspberry Pi’s 40 pin header using the gen4-4DPi Adaptor, which then connects to the gen4-4DPi display module using a 30-way FFC Cable.
Mounting of the gen4-4DPi is achieved with the 4x 4mm mounting holes present on the Resistive Touch Display Modules, enabling standard screws to fasten the Gen4-4DPi as required, or via the adhesive supplied on the Cover Lens Bezel which is part of the Capacitive Touch version.
Information about the gen4-4DPi-43T
- Universal Primary Display for the Raspberry Pi.
- Compatible with Raspberry Pi A+, B+, Pi2, Pi3, P3 B+, Pi4, Pi Zero and Pi Zero W.
- 4.3″ LCD TFT Screen
- 480×272 pixel Resolution
- TFT Screen with integrated 4-wire Resistive Touch Panel
- Display GUI output / primary output, just like a monitor connected to the Raspberry Pi
- High Speed 48MHz SPI connection to the Raspberry Pi, featuring SPI compression technology.
- Powered directly off the Raspberry Pi, no external power supply is required.
- On board EEPROM for board identification, following the HAT standard.
- 4x 4.0mm Mounting holes on Resistive Touch module, or via adhesive on the bezel for Capacitive Touch model.
- RoHS and CE Compliant.

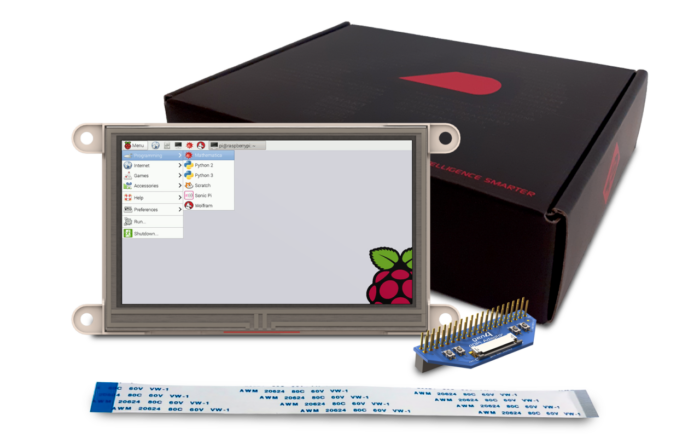

gen4-43DPi-43T includes the following items:
- gen4-4DPi-43T Module
- gen4-4DPi-Adaptor
- 30-way FFC Cable
SPECIFICATIONS
Diagonal Display Size INCHES | 4.3 |
---|---|
Resolution | 480×272 |
Brightness | 400 cd/m2 |
Backlight LEDs | 2×5 |
Touch | Resistive Touch |
Operating Ambient Temperature | -20°C to +70°C |
Storage Temperature | -30°C to +80°C |
Connector | 30 way FFC |
Display Viewing Area (mm) | 95.04 x 53.86 |
Module Dimensions (mm) | 127.6 x 69.3 x 9.0 |
RoHS? | Yes |
Country of origin | Australia |
CCCN / tarif code | 85312000 |
ECCN export control code | EAR99 |
TARIC Code | 8531209590 |
AHECC Code | 85312000 |
Package Dimensions L x W x H (mm) | 167 x 126 x 41 |
Product Weight (g) | 78 |
Weight with Packaging (g) | 159 |
REACH | Yes |
CE Mark | Yes |
Supply Voltage | 3.3V – 5.0V DC (stable supply from Rpi) |
Supply Current | 250 mA (display only) |
Frame Rate | 20 fps |
colours | RGB 65K |
Viewing Angle | Standard Viewing Angle |
