0.9″ Internet of Displays (IoD) Display Modules
The IoD-09 (Internet of Displays) series is a range of miniature display modules Designed and Manufactured by 4D Systems.
The IoD-09 modules feature a full colour 0.9” TFT LCD display. They are powered by the WiFi enabled ESP8266, which offers an array of functionality and options for any Designer / Integrator / User.
The IoD-09 modules can be easily programmed using 4D Systems Workshop4 IDE or the Arduino IDE installed with the ESP8266 core.
The feature-rich 4D Systems GFX4dIoD09 library enables speedy development of applications by providing extensive primitive graphics functions, enhanced graphics via Workshop4, SD card access, and much more, all integrated into a single library.
The on-board SD card socket enables the use of FAT16 or FAT32 formatted cards for extensive storage capabilities.

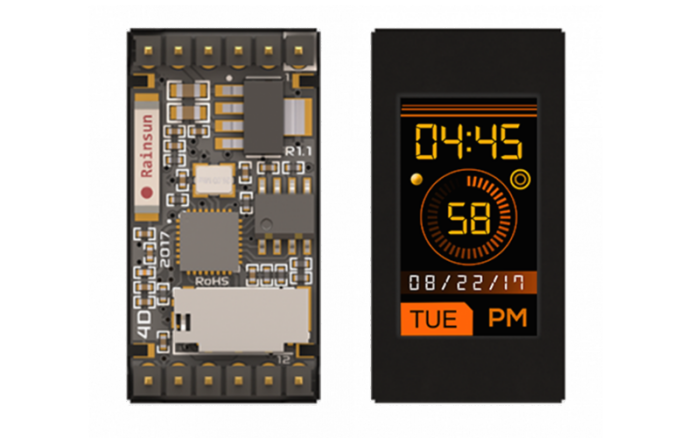

The IoD-09 modules feature 12 pads, 6 on each end, for easy and simple connection to an application or mother board, or for connecting to accessory boards for a range of functionality advancements.
The IoD-09TH features Through Hole (TH) pads with male pin headers mounted, and the IoD-09SM features Surface Mount (SM) pads.
This range of modules has been designed to minimise the impact of display related circuitry, and provide a platform suitable for integration into a product.
The IoD-09 modules can act as master or slave devices, they can be effortlessly connected to the internet, can display a raft information and graphics, along with the capability to communicate to SPI, I2C, and/or 1-wire devices, as well as having general GPIO for digital control/input.
Information about the IoD-09 Display Modules
- Powerful Intelligent LCD-TFT display module powered by the Espressif ESP8266 SoC.
- 80 x 160 Resolution, RGB 65K true to life colours, TFT Screen.
- Built in WiFi suitable for ‘Internet of things’ applications.
- 802.11 b/g/n/e/i support
- Integrated TCP/IP protocol stack
- WiFi 2.4 GHz, supporting WPA/WPA2 and WEP/TKIP/AES, along with STA/AP/STA+AP/P2P operation modes
- 4Mbit (512kb) of Flash memory for User Application Code and Data.
- 128Kb of SRAM of which 80kb is available for the User.
- 12 pin/pad interface, for all signals, power, communications and programming.
- On-board microSD memory card connector for multimedia storage and data logging purposes.
- DOS compatible file access (FAT16 or FAT32 format).
- Display full colour images, animations, and icons.
- 4.0V to 5.5V range operation (single supply).
- Module dimensions:
- (TH version) 31.8 x 16.4 x 11.7mm.
- (SM version) 37.0 x 16.4 x 5.9mm.
- Weight: (TH / SM) ~5 g.
- RoHS, REACH and CE compliant.
The IoD-09TH includes the following items:

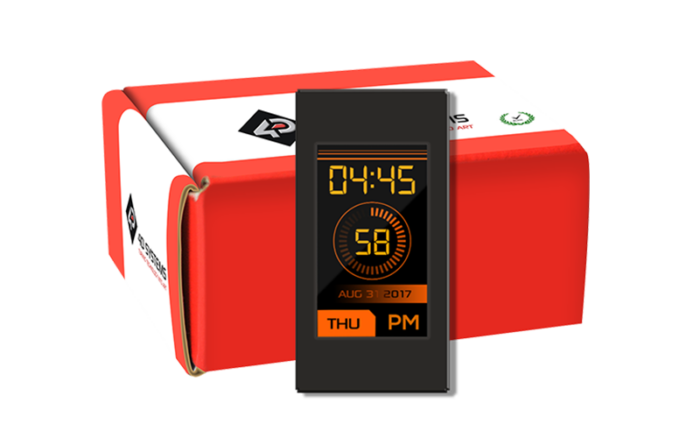

- IoD-09TH WiFi enabled Smart Display Module
If you are a first time user and just beginning your development, we strongly recommend purchasing a Starter Kit of this same model as it includes additional items that allow you to get started with your development immediately.
Starter Kit part number is SK-IoD-09TH.
SPECIFICATIONS
| Diagonal Display Size INCHES | 0.9 |
|---|---|
| Resolution | 80×160 |
| Brightness | 180 cd/m2 |
| Backlight LEDs | 1×1 |
| Touch | Non-Touch |
| Controller | Espressif ESP8266 SoC |
| Operating Ambient Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Connector | 2 x 6 pins rows with 2.54 mm pitch |
| Display Viewing Area (mm) | 20.16 x 11.52 |
| Module Dimensions (mm) | 31.8 x 16.4 x 11.77 |
| RoHS? | Yes |
| Country of origin | Australia |
| CCCN / tarif code | 8517620000 |
| ECCN export control code | 5A992.c |
| TARIC Code | 8517620000 |
| AHECC Code | 8517620000 |
| Package Dimensions L x W x H (mm) | 70 x 50 x 30 |
| Product Weight (g) | 5 |
| Weight with Packaging (g) | 19 |
| REACH | Yes |
| CE MarK | Yes |
| Supply Voltage | 5V |
| Supply Current | 140mA |
| Frame Rate | 50 fps (primitives) |
| colours | RGB 65K |
| Processor Capability | 650K Pixels / second |
| SD Card Slot | Yes – FAT16 or FAT32 Support. SPI Compatible microSD Cards Only |
| Flash | 512KB |
| RAM | 128KB |
| I2C | Yes |
| GPIO | 3 x GPIO |
| SPI | Yes |
| IDE | 4D Workshop4 IDE, Arduino IDE |
| Serial Speed | 300 to 921600 baud |
| Serial Interfaces | 1 |
| Viewing Angle | Standard Viewing Angle |
SIZE & WEIGHT
Viewing Area: 20.16 x 11.52 mm
Module Width: 31.8 mm
Module Height: 16.4 mm
Module Depth:11.77 mm
Module Weight: 5 g
WORKSHOP4 IDE
Workshop4 is a comprehensive software IDE for Microsoft Windows that provides an integrated software development platform for all of the 4D family of processors and modules. The IDE combines the Editor, Compiler, Linker and Downloader to develop complete 4DGL application code.
All user application code is developed within the Workshop4 IDE.
DEVELOPMENT ENVIRONMENTS THAT SUITS ANY APPLICATION & USER LEVEL
Workshop4 includes four development environments for the user to choose based on application requirements or even user skill level.
Designer
Visi
Visi-Genie
Serial
WORKSHOP4 PRO
Make complex widget design, simple.
Smart Widgets Editor is a powerful utility which enables the generation of Smart Widgets.
GENIE MAGIC
Genie Magic is an extension to ViSi-Genie, which is available in Workshop4 PRO. Genie Magic allows the User to add 4DGL code to various points in the ViSi-Genie backend code, which allows Users to take full advantage of the power of 4DGL, while retaining the speed and convenience of ViSi-Genie and its defined communication protocol.
Genie Magic allows you to enter 4DGL code in the form of Events, Code and Objects, along with various touch related additions too, giving you to the power to achieve advanced GUI’s in ViSi-Genie without having to write the full code yourself.
Genie Magic is fully supported by the genieArduino and geniePi libraries, making communication with an Arduino or Raspberry Pi host even more powerful.
When using Genie Magic in combination with the Smart Widget Editor, it is possible to use the Smart Widgets Editor tool and Smart Widgets to create other graphical user interface elements such as:
DOWNLOADS
Compatibility:
Workshop4 is a Windows-only product. It is compatible with Windows 8 through to Windows 11.
Note some older OS such as ME, Vista, XP and 7 have not been tested for some time and are not supported by Microsoft anymore; however, they may still work.
Legacy support updates for the older OS may not be possible, depending on what issues are found. For best results, run a current Windows OS.
It is possible to run Workshop4 under a VM on Linux or Mac. However, it is up to the User to set this up.
Related Documents
Order Now
- 0.9″, 80×160 pixel Intelligent Display Module
- Integrated WiFi ESP8266 Module
- Suitable for fast implementation of wireless GUI applications
- Through-Hole Mounting
- 4D Workshop4 IDE Compabitble
- Arduino IDE Compatible
