Vibrant PMOLED Technology
PMOLED (Passive Matrix OLED) technology delivers unparalleled image quality with true-to-life colors and nearly 180° viewing angles.
These displays are energy-efficient, lightweight, and do not require backlighting, making them ideal for a wide range of applications.
Whether you need a display for a consumer gadget or an industrial equipment, PMOLED technology ensures your visuals are sharp and vibrant.
Powered by the PIXXI-28 Processor

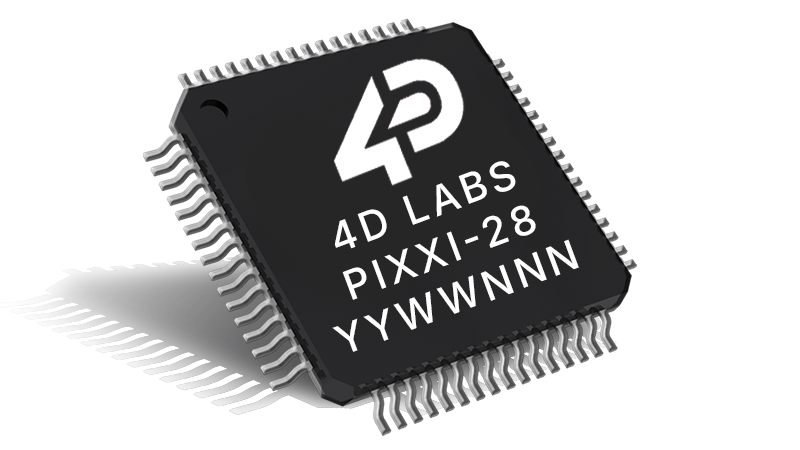

The PIXXI-28 processor, at the heart of the MicroOLED series, is designed for graphics-intensive applications. It offers impressive graphics power for rendering stunning images, animations, and video clips effortlessly.
Compatible with 4D Systems Workshop4/5 IDE, it streamlines GUI development. The processor also provides versatile I/O options, including analog input, Dallas 1-wire sensor capability, audio generation, and digital I/O, along with enhanced storage options via microSD card slot or 16MB serial flash.
Multiple display sizes and compact design
The 4D Systems microOLED series offers three display sizes ranging from 0.96″ to 1.7″, with resolutions from 96×64 to 160×128 pixels.
Packed in a compact design with sizes ranging from 32.7×26.7×13.2 to 52.1 x 36.0 x 13.8 mm, these displays support both portrait and landscape modes, providing versatile options for creating user-friendly graphical interfaces in various embedded applications.
Available Models
uOLED-128P2
uOLED-128P2 (Flash)
uOLED-160P2
uOLED-160P2 (Flash)
uOLED-196G2
uOLED-128G2
uOLED-160G2
uOLED-96P2
uOLED-96P2 (Flash)
| SKU | Size (inches) | Resolution | Brightness (cd/m2) | Viewing Area (mm) | Processor | Dimensions (mm) | External Memory | Datasheet | Downloads |
|---|---|---|---|---|---|---|---|---|---|
| uOLED-96P2 | 0.96 | 96x64 | 100 | 20.1 x 13.4 | PIXXI-28 | 32.70 x 26.70 x 13.20 | uSD Card Slot | https://resources.4dsystems.com.au/datasheets/pixxi28/uOLED-96P2/ | https://resources.4dsystems.com.au/downloads/pixxi28/uOLED-96P2/ |
| uOLED-96P2 (Flash) | 0.96 | 96x64 | 100 | 20.1 x 13.4 | PIXXI-28 | 32.70 x 26.70 x 13.20 | 16MB Serial Flash | https://resources.4dsystems.com.au/datasheets/pixxi28/uOLED-96P2/ | https://resources.4dsystems.com.au/downloads/pixxi28/uOLED-96P2/ |
| uOLED-128P2 | 1.5 | 128x128 | 100 | 27.0 x 27.0 | PIXXI-28 | 45.5 x 36.0 x 13.7 | uSD Card Slot | https://resources.4dsystems.com.au/datasheets/pixxi28/uOLED-128P2/ | https://resources.4dsystems.com.au/downloads/pixxi28/uOLED-128P2/ |
| uOLED-128P2 (Flash) | 1.5 | 128x128 | 100 | 27.0 x 27.0 | PIXXI-28 | 45.5 x 36.0 x 13.7 | 16MB Serial Flash | https://resources.4dsystems.com.au/datasheets/pixxi28/uOLED-128P2/ | https://resources.4dsystems.com.au/downloads/pixxi28/uOLED-128P2/ |
| uOLED-160P2 | 1.7 | 160x128 | 100 | 33.6 x 27.0 | PIXXI-28 | 52.1 x 36.0 x 13.8 | uSD Card Slot | https://resources.4dsystems.com.au/datasheets/pixxi28/uOLED-160P2/ | https://resources.4dsystems.com.au/downloads/pixxi28/uOLED-160P2/ |
| uOLED-160P2 (Flash) | 1.7 | 160x128 | 100 | 33.6 x 27.0 | PIXXI-28 | 52.1 x 36.0 x 13.8 | 16MB Serial Flash | https://resources.4dsystems.com.au/datasheets/pixxi28/uOLED-160P2/ | https://resources.4dsystems.com.au/downloads/pixxi28/uOLED-160P2/ |
| uOLED-96G2* | 0.96 | 96x64 | 100 | 20.1 x 13.4 | GOLDELOX | 32.70 x 26.70 x 13.20 | uSD Card Slot | https://resources.4dsystems.com.au/datasheets/goldelox/uOLED-96G2/ | https://resources.4dsystems.com.au/downloads/goldelox/uOLED-96G2/ |
| uOLED-128G2* | 1.5 | 128x128 | 100 | 27.0 x 27.0 | GOLDELOX | 45.5 x 36.0 x 13.7 | uSD Card Slot | https://resources.4dsystems.com.au/datasheets/goldelox/uOLED-128G2/ | https://resources.4dsystems.com.au/downloads/goldelox/uOLED-128G2/ |
| uOLED-160G2* | 1.7 | 160x128 | 100 | 33.6 x 27.0 | GOLDELOX | 52.1 x 36.0 x 13.8 | uSD Card Slot | https://resources.4dsystems.com.au/datasheets/goldelox/uOLED-160G2/ | https://resources.4dsystems.com.au/downloads/goldelox/uOLED-160G2/ |
* Not recommended for new designs.
Comparing uOLED P2 and G2 Series
The uOLED P2 series, powered by the advanced PIXXI-28 processor, offers significant enhancements over the G2 series, which uses the GOLDELOX processor.
The P2 series delivers superior graphics performance, increased memory capacity, faster processing speeds, and additional features like ViSi-Genie capability. These improvements make the P2 series ideal for new designs. Conversely, the G2 series, while still supported and manufactured as long as there is demand, is not recommended for new projects due to its older technology.
The new P2 series has been meticulously designed to be mechanically compatible with the G2 series, facilitating a seamless transition for existing designs seeking an upgrade.
WORKSHOP4 IDE
Tailored Development for 4D Processors and Modules

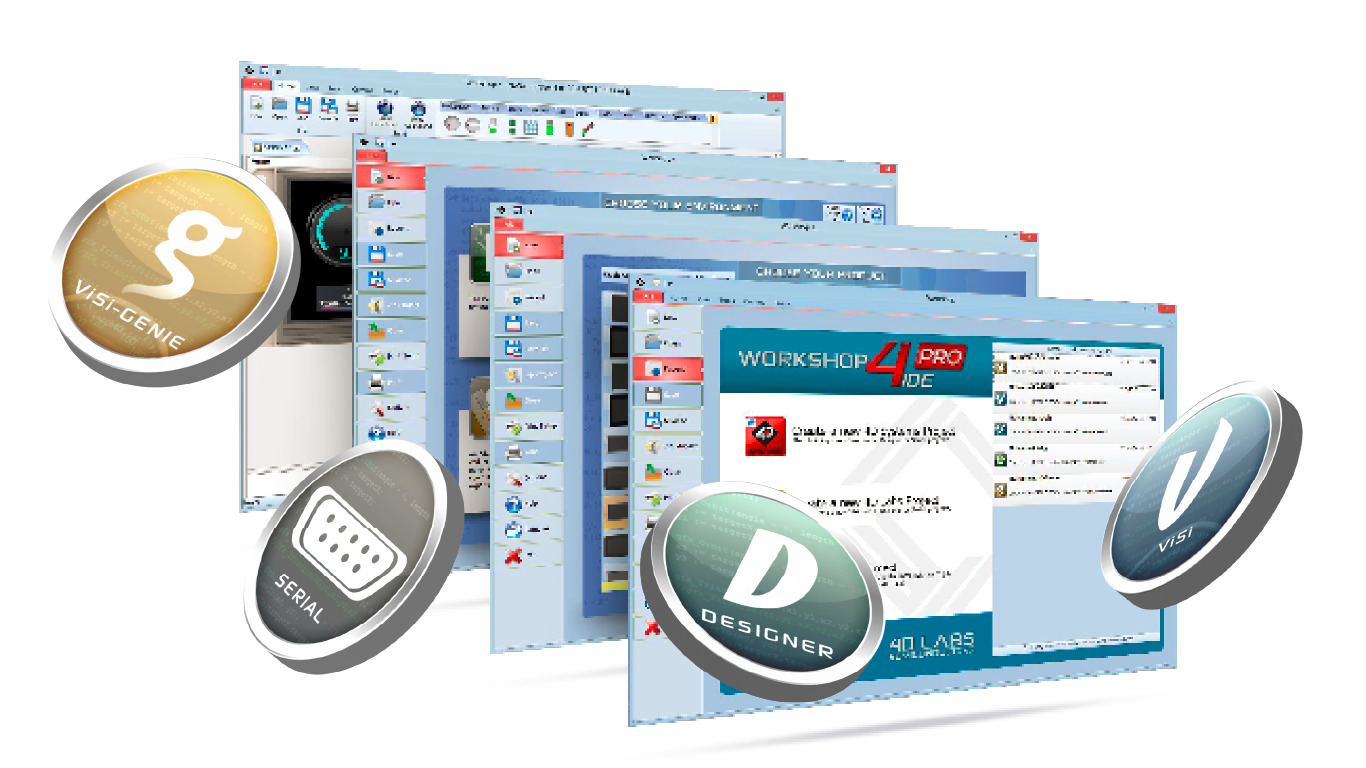

Workshop4 IDE is a comprehensive software development environment specifically designed for the 4D family of processors and modules. Whether you are a seasoned developer or just starting out, Workshop4 provides the perfect platform tailored to your development needs. This versatile IDE supports all core development processes, including code writing, compiling, linking, and transferring code to your target device.
Workshop4 IDE let you choose from four distinct environments—Designer, ViSi, ViSi-Genie, and Serial—each catering to different development preferences and project specifics. This flexibility allows developers to select the most suitable environment for their tasks.
Workshop4 IDE is your go-to development companion in the 4D ecosystem, simplifying complex tasks and enhancing productivity through its user-friendly and versatile design. Whether coding manually or designing visually, Workshop4 elevates your development experience to new heights.
Order Now
microOLED Series
SKU:
Price: US$49.95 – US$89.95
Volume Discount
Accessories
The uUSB-PA5-II is a compact, cost-effective USB to Serial-TTL UART bridge adaptor based on the Silicon Labs CP2104 chipset. Designed for easy integration with 4D Systems modules, it supports data rates up to 2 Mbps, USB 2.0 full-speed communication, and offers 3.3V/5V tolerant signals. Ideal for both prototyping and production, it features a standard mini USB connection.
The 4D-UPA (Universal Programmer Adaptor) provides a reliable interface for programming, updating, and configuring 4D Systems display modules and processors. Featuring a 30-way, 0.5mm pitch FPC connector, it ensures high-speed, stable communication with Workshop4 IDE, making it ideal for development, prototyping, and volume production environments.
Designed for critical embedded environments, this 4GB Industrial Grade micro SD Card offers exceptional reliability, advanced firmware protection, and SPI compatibility. Ideal for 4D Systems' intelligent displays, it prevents Read Disturb errors and ensures data integrity under high read/write demands. With industrial temperature tolerance and Phison-certified performance, it’s the recommended storage solution for graphics, logging, and robust applications.
The 4D Serial Pi Adaptor provides a simple, direct serial interface between Raspberry Pi boards and 4D Systems display modules using a 5-pin connection. Featuring a pass-through header design, it maintains compatibility with other Raspberry Pi accessories. Supplied with jumper cables, it supports 5V power and works with all Raspberry Pi models.
The 4D Serial Pi Adaptor provides a simple, direct serial interface between Raspberry Pi boards and 4D Systems display modules using a 5-pin connection. Featuring a pass-through header design, it maintains compatibility with other Raspberry Pi accessories. Supplied with jumper cables, it supports 5V power and works with all Raspberry Pi models.
Enhance your development setup with the 5 5-pin ribbon cable from 4D Systems. Designed for compatibility with our intelligent display modules, this 5-way female-to-female ribbon cable, accompanied by a male-to-male adapter, offers flexible and reliable serial communication. Ideal for prototyping and integration, it ensures seamless connections between your display modules and host systems, streamlining your development process.
