4D Arduino Adaptor Shield (rev 2.0)

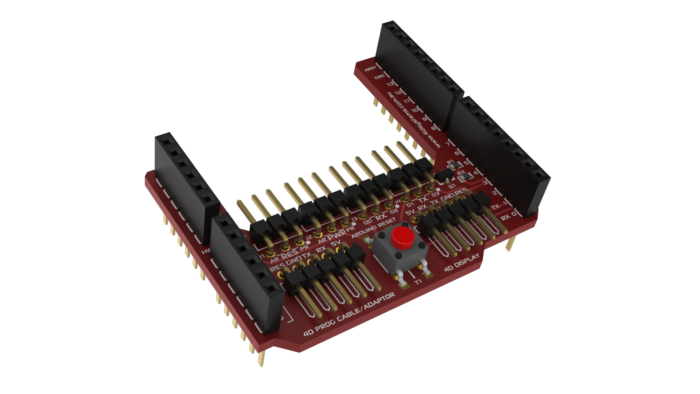

The 4D Arduino Adaptor Shield (4Display-AdaptorShield) is a simple Arduino Shield designed to provide a convenient interface to attach 4D Systems display modules to the Arduino platform, without having to use jumper wires on the Arduino headers.

The Arduino Adaptor Shield is included in various Arduino Module Packs, but can be purchased separately if a 4D Display Module is not required or is owned already.

For more information regarding the 4D Arduino Adaptor Shield, please refer to the datasheet in the download section below.

NOTE: This Adaptor Shield IS compatible with the gen4 range of Displays we offer, for example the gen4-uLCD-24DT, or gen4-uLCD-43DT. It is compatible with all Picaso and Diablo gen4 Display modules. Please refer to the gen4-AR datasheet in the download section below.

THE 4D-ARDUINO-ADAPTOR-SHIELD-II INCLUDES :

  • 4D Arduino Adaptor Shield II
  • 150mm 5 way Female-Female jumper cable
  • 5 way Male-Male adaptor.

SPECIFICATIONS

Operating Ambient Temperature

-15°C to +65°C

Storage Temperature

-30°C to +70°C

RoHS?

Yes

Country of origin

Australia

CCCN / tarif code

85423109

ECCN export control code

EAR99

TARIC Code

8542319000

AHECC Code

85423109

Package Dimensions L x W x H (mm)

70 x 50 x 30

Product Weight (g)

28

Weight with Packaging (g)

45

REACH

Yes

Supply Voltage

4.5V-5.5V DC
