Display Size
1.44 / 36.576 mm
Resolution
128 × 128 pixels
Brightness
~250 cd/m²
LCD Touch Type
Non-Touch
4DLCD 1.44"
Volume Discount
Available Models & Details
4DLCD 1.44"
4DLCD-144
4DLCD-144

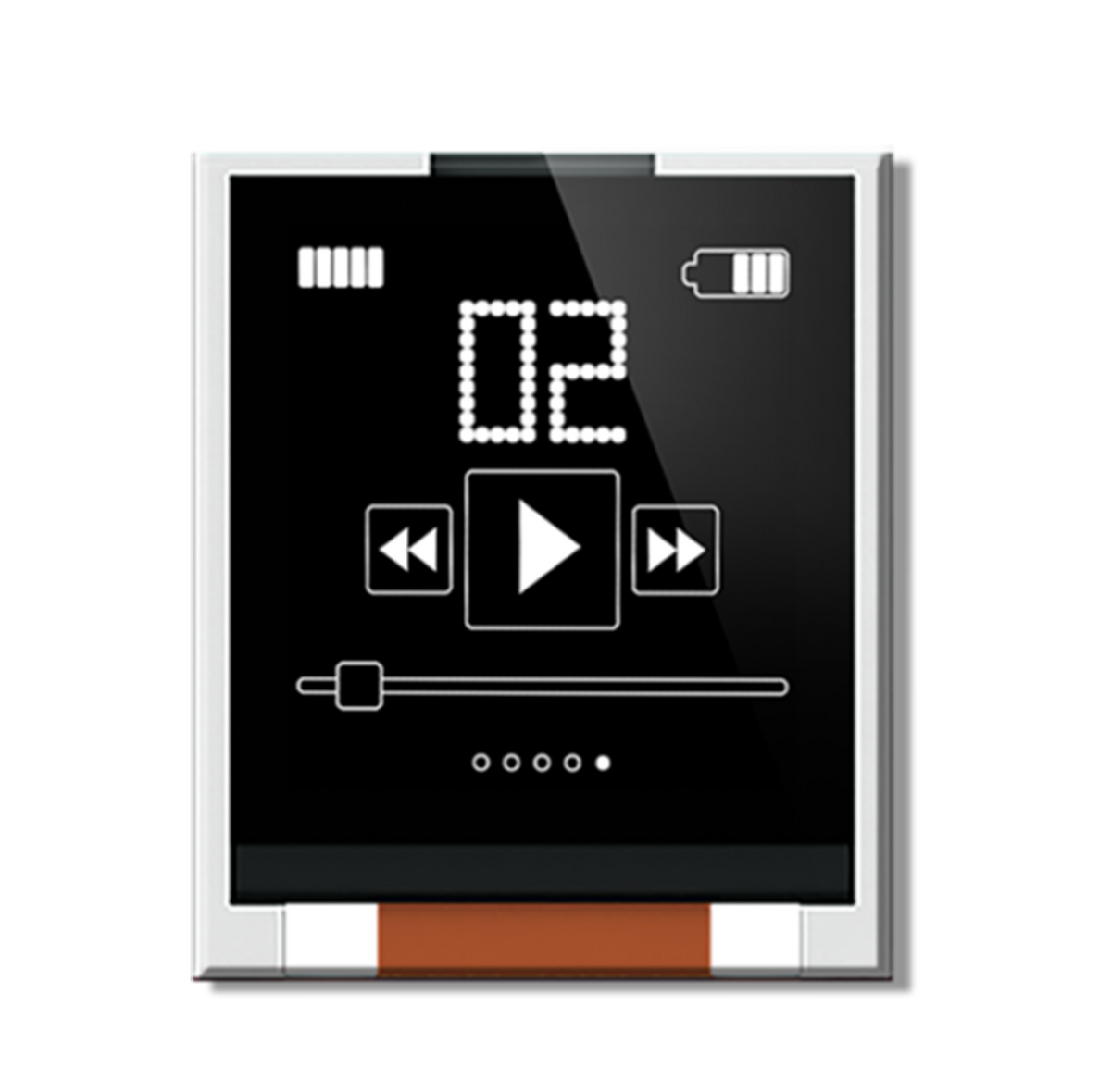

The 4DLCD-144 is a 1.44" TFT display with 128x128 resolution, 65K colours, and 250 cd/m² brightness. It features a Non-Touch design with no cover lens bezel and supports MCU-8bit interface. The viewing area is 25.5 x 26.5 mm, with overall dimensions of 33.50 x 37.50 x 2.60 mm.
4DLCD-144
The 4DLCD-144 is a 1.44" TFT display with 128x128 resolution, 65K colours, and 250 cd/m² brightness. It features a Non-Touch design with no cover lens bezel and supports MCU-8bit interface. The viewing area is 25.5 x 26.5 mm, with overall dimensions of 33.50 x 37.50 x 2.60 mm.
Product Availability Statement
Frequently Asked Questions
Find quick answers about our display modules, embedded integration, customization capabilities, and system compatibility.
How do I choose the right display module for my project?
Start by identifying the demands of your product environment: required screen size, touch capability, operating conditions and UI complexity. Our consistent form-factor families allow you to select a module that fits your constraints today and upgrade performance later without redesigning your enclosure or PCB. Our documentation hub provides comparison tables to assist selection.
What is the difference between a smart display and a host-driven display?
Smart displays include an onboard processor that handles graphics, widgets, UI logic and drawing commands internally. This reduces load on your host MCU, simplifies code and often shortens development time dramatically. Host-driven modules require the host MCU to manage everything, which may be appropriate for minimal UIs but introduces more integration work.
Can I upgrade processors without changing my enclosure or PCB?
Yes. Our architecture is deliberately designed around footprint consistency. Most display families maintain identical mechanical and electrical footprints across multiple processor types, enabling generation-to-generation performance improvements without mechanical redesign.
Do you offer non-touch and touch options?
Yes. Many display families provide variants for non-touch, resistive-touch and capacitive-touch configurations. Capacitive-touch variants are recommended for modern, responsive UI experiences.
