Specifications

Display Size
3.2 / 81.28 mm

Resolution
320 × 240 pixels

Brightness
~200 cd/m²

LCD Touch Type
Resistive Touch

View full specifications >

Raspberry Pi

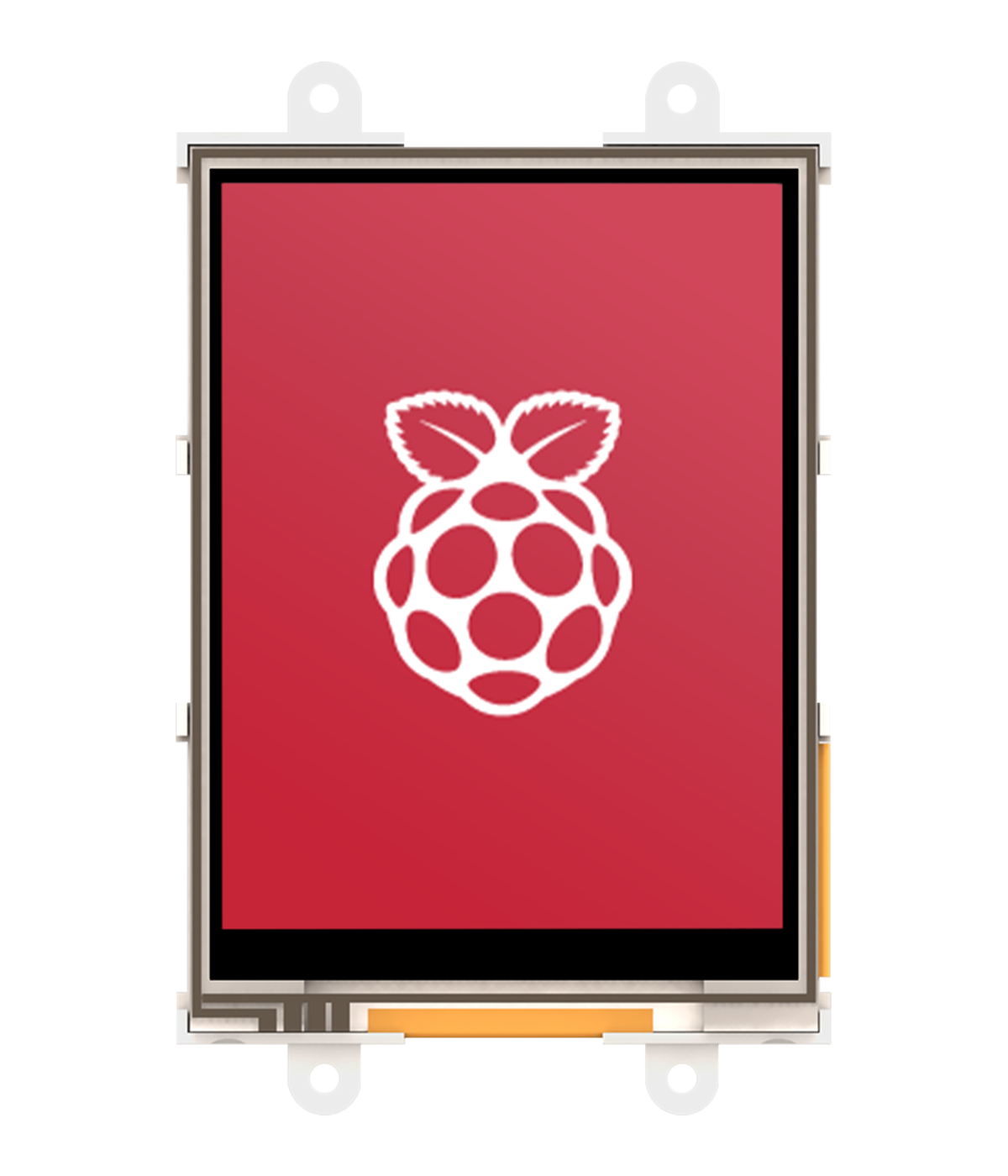

4DPI-32-II

$54.95 USD

SKU: 4DPI-32-II

3.2" 320x240 resolution Primary Display for the Raspberry PI.
Plugs directly on top of the Raspberry Pi
Compatible with A+/B+/Pi2/Pi3/Zero/ZeroW only.
High speed SPI Interface with Compression Technology enables high speed graphics.

Size: 3.2

3.2

Quantity:

In stock

Request For Quote

Volume Discount

We are delighted to offer volume discounts to qualified customers and organisations. Request For Quote

Raspberry Pi 4DPI-32-II

$54.95 USD

3.2″ Primary Display for the Raspberry Pi

The 4DPi-32-II is a 3.2″ 320×240 Primary Display for the Raspberry Pi, which plugs directly on top of a Raspberry Pi and displays the primary output which is normally sent to the HDMI or Composite output. It features an integrated Resistive Touch panel, enabling the 4DPi-32-II to function with the Raspberry Pi without the need for a mouse.

Communication between the 4DPi-32-II and the Raspberry Pi is interfaced with a high speed 48Mhz SPI connection, which utilises an on-board processor for direct command interpretation and SPI communication compression, and features a customised DMA enabled kernel.

The 4DPi-32-II is designed to work with the Raspbian Operating System running on the Raspberry Pi, as that is the official Raspberry Pi operating system. The new PIXEL addition to Raspbian is also supported.

Powered directly off the Raspberry Pi, this 3.2″ Touch panel allows effortless connection, and a single download package will get you up and running with a few simple steps. Please refer to the Datasheet for detailed information.

Product Availability Statement

Supply Commitment

4D Systems aims to supply its products for as long as possible, but cannot fully guarantee availability. This applies to modules, displays, components, and materials over long terms like 5–10 years.

Product Availability Conditions

4D Systems can only supply products while materials are available on the open market. Supply continues as long as demand exists and materials/components are available to produce viable products.

End of Life (EOL) Notifications

4D Systems provides End-of-Life (EOL) notifications, usually 3–6 months before the final run. In rare cases, sudden supplier issues may prevent notice, though alternatives are offered.

Ongoing Supply & Contact

4D Systems strives to continue supplying popular products and provide advance notice when items may become unavailable. For any questions regarding this statement, please contact us directly to discuss.

Read full Product Availability Statement →

Information about the display module

Universal 3.2″Primary Display for the Raspberry Pi.
Compatible with Raspberry Pi A+, B+, Pi2, Pi3, Zero, Zero W versions.
320×240 QVGA Resolution, RGB 65K true to life colours, TFT Screen with integrated 4-wire Resistive Touch Panel.
Display full GUI output / primary output, just like a monitor connected to the Raspberry Pi
High Speed 48Mhz SPI connection to the Raspberry Pi, featuring SPI compression technology.
Powered directly off the Raspberry Pi, no external power supply is required.
Typical frame rate of 25FPS. Higher if image is able to be compressed by Kernel.
On/Off or PWM controlled backlight, selectable by on board jumper.
On-board EEPROM for Identification (NEW version HW only)
Module dimensions: 57.3 x 92.4 x 20.5mm (including corner plates).
Display Viewing Area: 48.60 x 64.80mm
4x corner plates with 2.6mm holes for mechanical mounting.
RoHS and CE Compliant.

The 4DPi-32-II includes the following items:

4DPi-32-II Display Module
Getting Started Manual available as a Download
