Flexible Flat Cables
Volume Discount
Available Models & Details
Flexible Flat Cables
Flexible Flat Cables

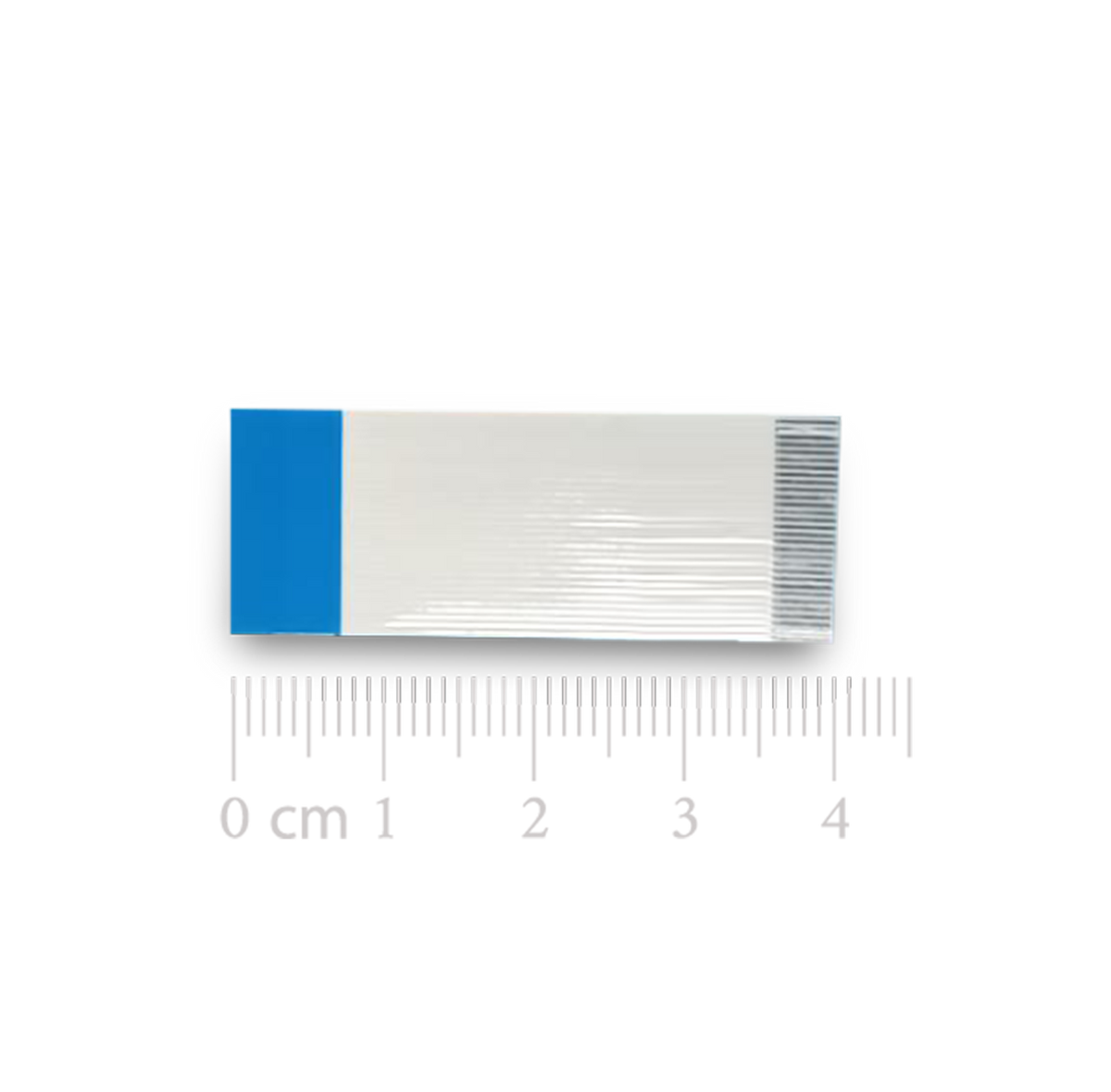

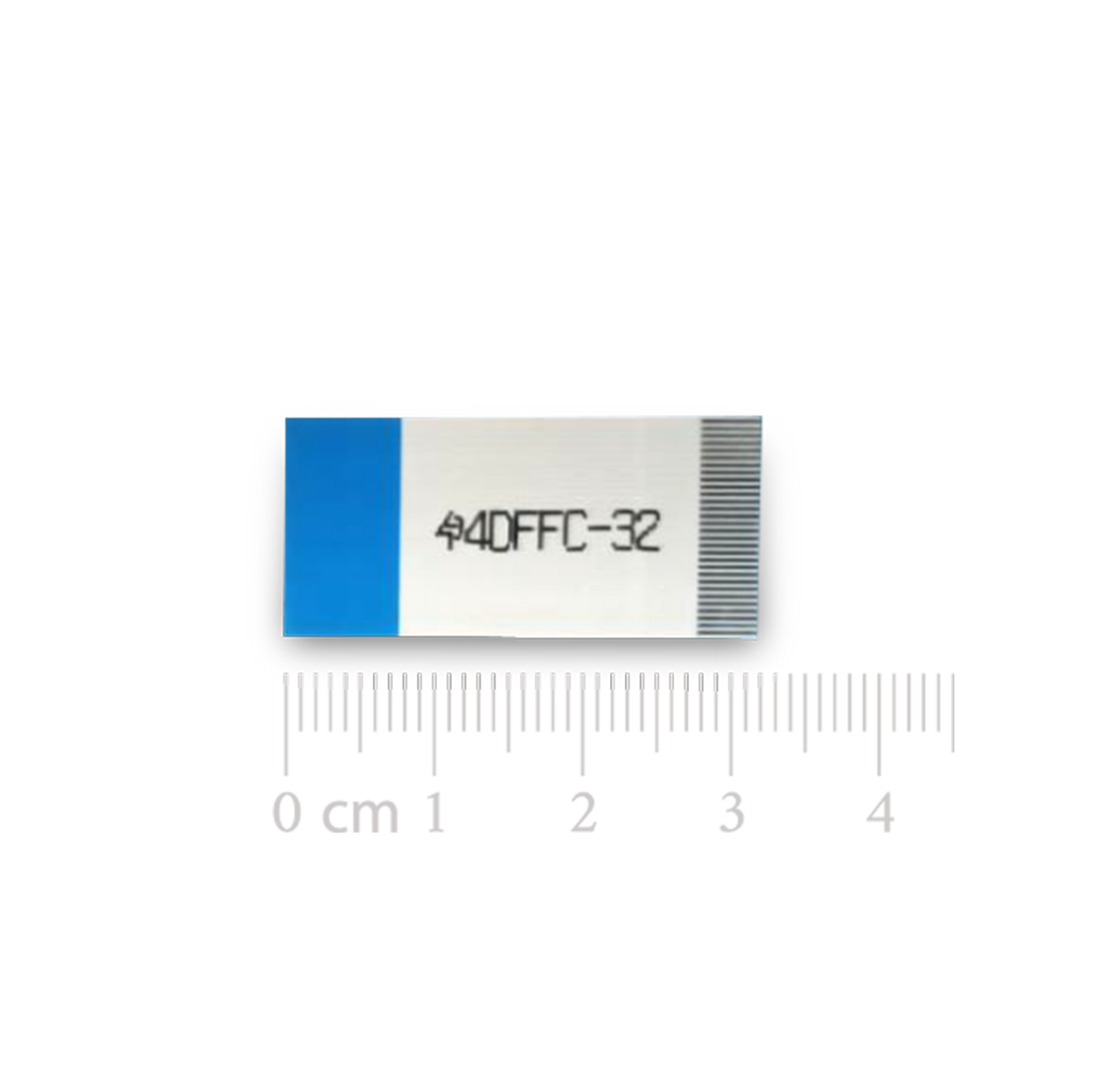

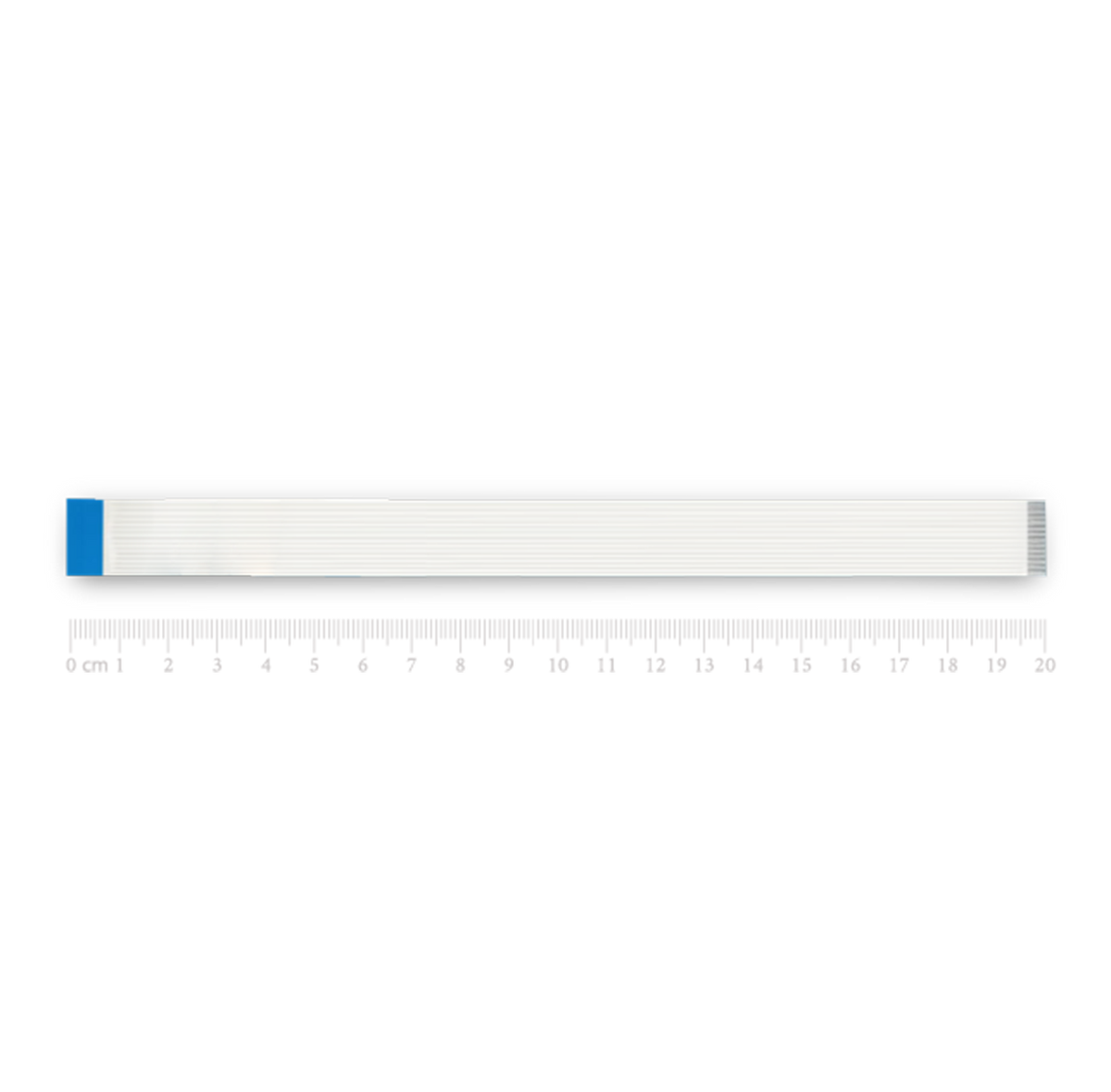

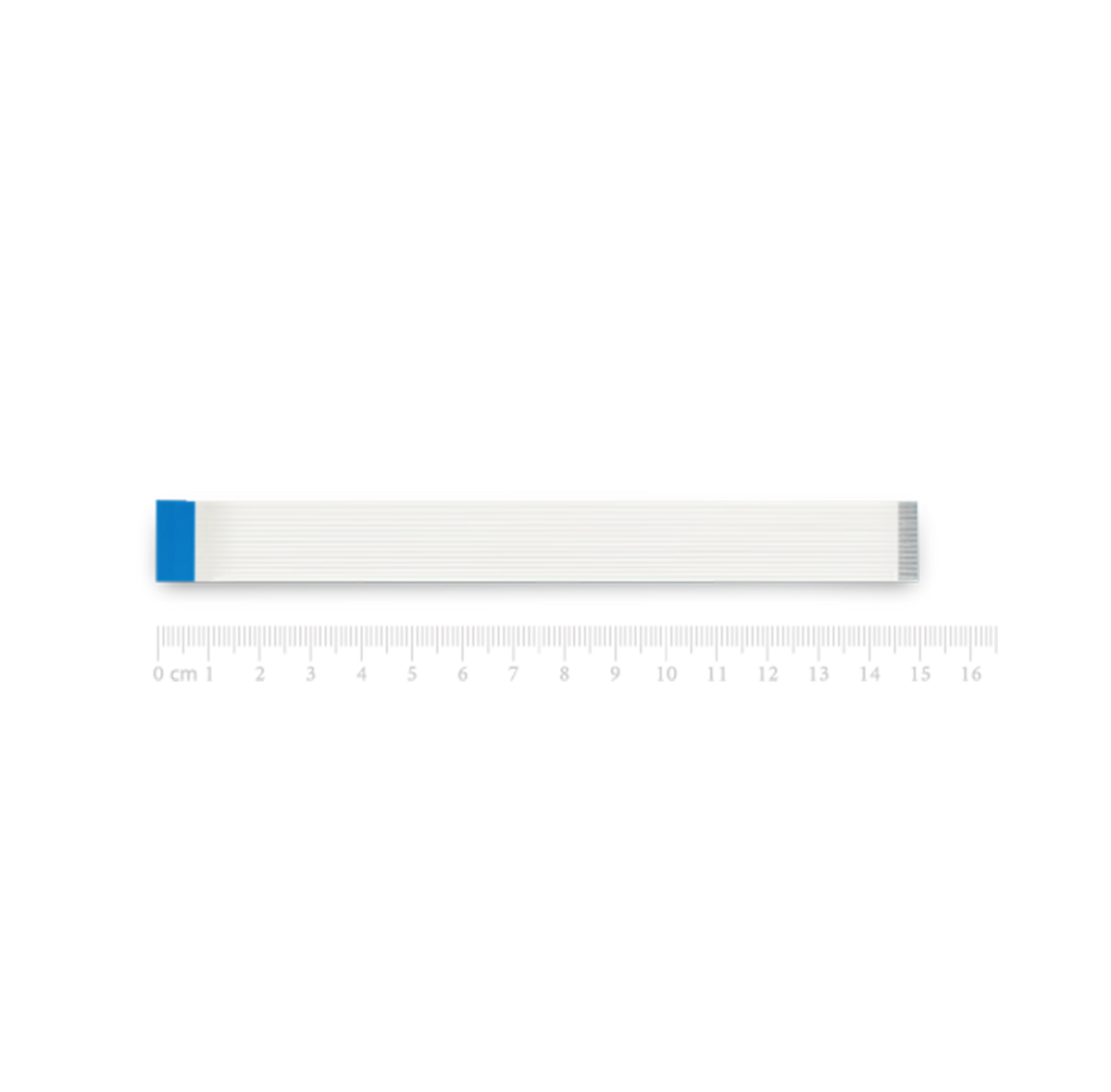

Flexible Flat Cable
30-pin Flexible Flat Cable (FFC) with 0.5mm pitch (opposite way), available in length variable from 22mm to 200mm. Compatible with a standard 30-pin, 0.5mm pitch, 0.3mm thick FFC connector. This cable on one end has contacts on the top of the cable, and the other end has contacts at the bottom of the cable. The 4D-FFC- cables are ideal for connecting all the 4D Systems displays to any host board.
Features
- Number of pins: 30
- Pitch: 0.5mm (0.02″)
- Length: from 22 to 200 mm
- Cable type: AWM 20624 80C 60V VW-1
- Heat resistance: up to 80°C
- Connections: Opposite side at each end (Type B)
Flexible Flat Cable
30-pin Flexible Flat Cable (FFC) with 0.5mm pitch (opposite way), available in length variable from 22mm to 200mm. Compatible with a standard 30-pin, 0.5mm pitch, 0.3mm thick FFC connector. This cable on one end has contacts on the top of the cable, and the other end has contacts at the bottom of the cable. The 4D-FFC- cables are ideal for connecting all the 4D Systems displays to any host board.
Features
- Number of pins: 30
- Pitch: 0.5mm (0.02″)
- Length: from 22 to 200 mm
- Cable type: AWM 20624 80C 60V VW-1
- Heat resistance: up to 80°C
- Connections: Opposite side at each end (Type B)
Product Availability Statement
Frequently Asked Questions
Find quick answers about our display modules, embedded integration, customization capabilities, and system compatibility.
How do I choose the right display module for my project?
Start by identifying the demands of your product environment: required screen size, touch capability, operating conditions and UI complexity. Our consistent form-factor families allow you to select a module that fits your constraints today and upgrade performance later without redesigning your enclosure or PCB. Our documentation hub provides comparison tables to assist selection.
What is the difference between a smart display and a host-driven display?
Smart displays include an onboard processor that handles graphics, widgets, UI logic and drawing commands internally. This reduces load on your host MCU, simplifies code and often shortens development time dramatically. Host-driven modules require the host MCU to manage everything, which may be appropriate for minimal UIs but introduces more integration work.
Can I upgrade processors without changing my enclosure or PCB?
Yes. Our architecture is deliberately designed around footprint consistency. Most display families maintain identical mechanical and electrical footprints across multiple processor types, enabling generation-to-generation performance improvements without mechanical redesign.
Do you offer non-touch and touch options?
Yes. Many display families provide variants for non-touch, resistive-touch and capacitive-touch configurations. Capacitive-touch variants are recommended for modern, responsive UI experiences.
