gen4-Breakout
Volume Discount
Available Models & Details
gen4-Breakout
Overview and Compatibility
Overview and Compatibility
The gen4-Breakout is compatible with multiple 4D gen4 display modules and PIXXILCD modules. It is included in some Starter Kit (SK) packs with certain products or can be obtained separately.
The board provides a quick and easy way to interface with 4D gen4 display modules, allowing straightforward access to all 30 signals from the FFC connector.
Design and Connectivity
Design and Connectivity

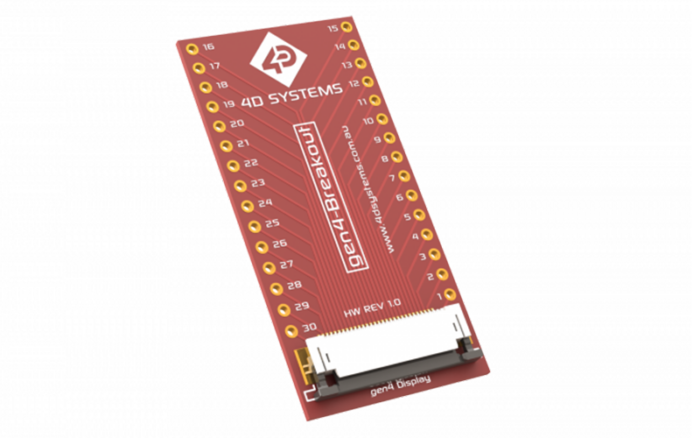

The gen4-Breakout is simple yet versatile. It breaks out the 30 signals from the FFC connector into 30 pads—15 down each side.
The board is breadboard-compatible if desired using header pins (not included), which can be soldered for ease of connections, or wires can be soldered directly. A 30-way top contact FFC connector allows connection to gen4 or PIXXILCD display modules, while the through-hole pads provide convenient access to each signal.
Features and Use Cases
Features and Use Cases
The gen4-Breakout is especially useful when direct access to each of the 30 signals is required without interference from USB devices or other peripherals, such as using the TX/RX pins of a gen4 module without conflict from a 4D-UPA programmer. It offers simple access to signals for both development and final products, eliminating the need to manage the FPC connector directly.
The board is compatible with all gen4 display modules featuring a 30-pin FFC, or with PIXXILCD modules using the 30-to-15 FPC cable included with the display. The gen4-Breakout breaks out each signal individually, independent of pinout or module compatibility. Please refer to the connected display module for the function of each pin.
Overview and Compatibility
The gen4-Breakout is compatible with multiple 4D gen4 display modules and PIXXILCD modules. It is included in some Starter Kit (SK) packs with certain products or can be obtained separately.
The board provides a quick and easy way to interface with 4D gen4 display modules, allowing straightforward access to all 30 signals from the FFC connector.
Design and Connectivity
The gen4-Breakout is simple yet versatile. It breaks out the 30 signals from the FFC connector into 30 pads—15 down each side.
The board is breadboard-compatible if desired using header pins (not included), which can be soldered for ease of connections, or wires can be soldered directly. A 30-way top contact FFC connector allows connection to gen4 or PIXXILCD display modules, while the through-hole pads provide convenient access to each signal.
Features and Use Cases
The gen4-Breakout is especially useful when direct access to each of the 30 signals is required without interference from USB devices or other peripherals, such as using the TX/RX pins of a gen4 module without conflict from a 4D-UPA programmer. It offers simple access to signals for both development and final products, eliminating the need to manage the FPC connector directly.
The board is compatible with all gen4 display modules featuring a 30-pin FFC, or with PIXXILCD modules using the 30-to-15 FPC cable included with the display. The gen4-Breakout breaks out each signal individually, independent of pinout or module compatibility. Please refer to the connected display module for the function of each pin.
