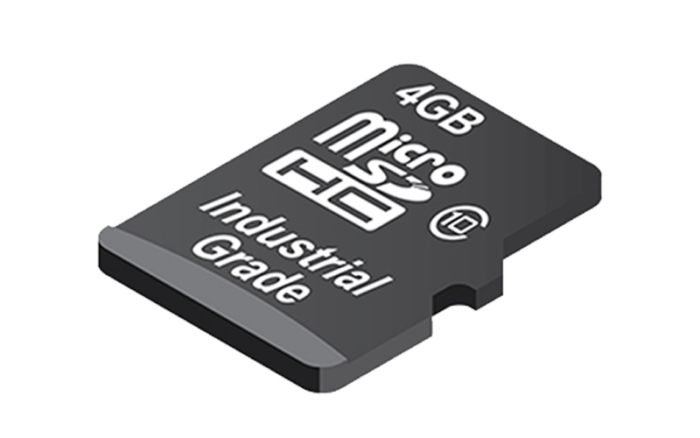

4GB Industrial Grade microSD Card

This is a Class 10 SD-HC 4GB Industrial rated microSD card.  These cards are unique and feature an advanced firmware to prevent corruption in harsh environments, and can instill a higher level of confidence in the end product when these cards are used.

These cards are superior to standard commercial grade cards and other standard industrial grade cards, due to their advanced firmware, which can prevent a phenomenon called ‘Read Disturb’ from occurring, along with other advanced enhancements. Read Disturb can result in random bit changes causing corruption when the same information is read continuously without being overwritten. This is possible to do when using them in 4D Systems modules due to the nature of the graphics, and therefore these cards offer advanced protection against this due to the firmware’s unique ability to prevent this from occurring.

The uSD-4GB Industrial Grade memory card can be used to store images, animations, text, graphics objects, for data logging, and many more uses, when used in the 4D intelligent display modules.

These cards are SPI Compatible, they are sourced directly from the Manufacturer, Phison in Taiwan, and are the recommended micro SD card for use with 4D Systems products.

Not all cards on the market are SPI compatible, and therefore not all cards can be used in 4D Systems products. Buy with confidence, choose the cards recommended by 4D Systems.

Extremely small footprint measuring only 15mm x 11mm x 0.8mm

uSD-4GB-Industrial Specifications

  • High reliability, Gold Grade, operating at -25°C to 85°C
  • PS8210 MLC 15nm Technology
  • Water proof, Dust proof and ESD Resistant
  • Enhanced endurance by Advanced Dynamic/ Static Wear Leveling algorithm
  • Read Disturb Protector -Auto Refresh technology to ensure data integrity especially in frequent read operations
  • Enhanced power cycling support
  • Support BCH ECC engine up to 40bit/1KByte
  • Support CPRM
  • RoHS compliant
  • CE & FCC certification

This item includes the following:

  • uSD-4GB Industrial Memory Card

SPECIFICATIONS

Operating Ambient Temperature

-25°C to +85°C
Storage Temperature

-25°C to +85°C
Module Dimensions (mm)

11.00 x 15.00 x 1.00
RoHS?

Yes
Country of origin

Taiwan
CCCN / tarif code

85235100
ECCN export control code

EAR99
TARIC Code

8523511000
AHECC Code

85235100
Product Weight (g)

15
Weight with Packaging (g)

15
REACH

Yes
CE Mark

Yes
colours

N/A
Flash

4GB

SIZE & WEIGHT

Viewing Area: N/A

Module Width: 11.00 mm

Module Height: 15.00 mm

Module Depth: 1.00 mm

Module Weight: 15 g

WORKSHOP4 IDE

Workshop4 is a comprehensive software IDE for Microsoft Windows that provides an integrated software development platform for all of the 4D family of processors and modules. The IDE combines the Editor, Compiler, Linker and Downloader to develop complete 4DGL application code.

All user application code is developed within the Workshop4 IDE.

DEVELOPMENT ENVIRONMENTS THAT SUITS ANY APPLICATION & USER LEVEL

Workshop4 includes four development environments for the user to choose based on application requirements or even user skill level.

Designer

  • Enables user to write 4DGL code to program the display module.
  • 4DGL syntax is similar to C: no need to learn a new language.
  • 4DGL is optimized for GOLDELOX, PICASO, PIXXI and DIABLO Controllers.

Visi

  • Aptly named, a visual programming experience as you develop the display.
  • Enables drag and drop of objects in a WYSIWYG editor.
  • Software generates 4DGL code for the graphics.

Visi-Genie

  • An advanced environment; no 4DGL coding Required.
  • Everything is automated.
  • Drag and drop objects on the display.
  • Code written automatically.

Serial

  • ransforms the module into a serial slave.
  • Control the module from any host microcontroller with a serial port.
  • All serial protocols and documentation are provided.

WORKSHOP4 PRO

Make complex widget design, simple.

Smart Widgets Editor is a powerful utility which enables the generation of Smart Widgets.

  • Users can create complex widgets with up to six layers, including the layer for the base image. The order of the layers can be arranged as desired.
  • Each layer can contain one or more images arranged in sequence that can be manipulated in a variety of ways. Image manipulation options include horizontal motion, vertical motion, and angular motion. Additionally, the transparency of a layer can be set.
  • Two or more layers can be linked to produce synchronized movements of images. This enables the generation of complex widgets with multiple moving parts. Clockwork feature is also supported. This enables users to quickly generate clock widgets.
  • Each layer can have a numeric part which can display numbers in various fonts and formats. Alternatively, the numeric part can be a fixed sequence of text.
  • The output frames can be utilized using any of the supported Workshop4 environments.

GENIE MAGIC

Genie Magic is an extension to ViSi-Genie, which is available in Workshop4 PRO. Genie Magic allows the User to add 4DGL code to various points in the ViSi-Genie backend code, which allows Users to take full advantage of the power of 4DGL, while retaining the speed and convenience of ViSi-Genie and its defined communication protocol.

Genie Magic allows you to enter 4DGL code in the form of Events, Code and Objects, along with various touch related additions too, giving you to the power to achieve advanced GUI’s in ViSi-Genie without having to write the full code yourself.

Genie Magic is fully supported by the genieArduino and geniePi libraries, making communication with an Arduino or Raspberry Pi host even more powerful.

When using Genie Magic in combination with the Smart Widget Editor, it is possible to use the Smart Widgets Editor tool and Smart Widgets to create other graphical user interface elements such as:

  • Dropdown Menu

  • Side Menu

  • ‘Carousel Slider’

  • List Box

  • Dock Menu

  • Quarter-Rotary Menu

  • Fading Slide-To-Unlock Button

  • Spectrum With Transparency

  • And Many Others

DOWNLOADS

Compatibility: Workshop4 is a Windows-only product. It is compatible with Windows 8 through to Windows 11.

Note some older OS such as ME, Vista, XP and 7 have not been tested for some time and are not supported by Microsoft anymore; however, they may still work.
Legacy support updates for the older OS may not be possible, depending on what issues are found. For best results, run a current Windows OS. It is possible to run Workshop4 under a VM on Linux or Mac. However, it is up to the User to set this up.

Documentation

Phison Industrial microSD Datasheet

Related Documents

REACH Declaration for uSD-4GB-Industrial
RoHS Declaration Memory & Storage Range

RFQ – VOLUME ORDERS

We are delighted to offer volume discounts to qualified customers and organizations.

Our dedicated Volume Sales team will address your specific requirements and help you get an accurate quotation in a timely manner.

Order Now

uSD-4GB-Industrial

  • 4GB Industrial Grade microSD Card
  • Class 10
  • Special firmware to prevent Read Disturb when used with 4D Systems Display Modules
  • Specific model: PS8210 + MLC

US$29.95
