uUSB-PA5-II
Volume Discount
Available Models & Details
uUSB-PA5-II
Overview and Connectivity
Overview and Connectivity

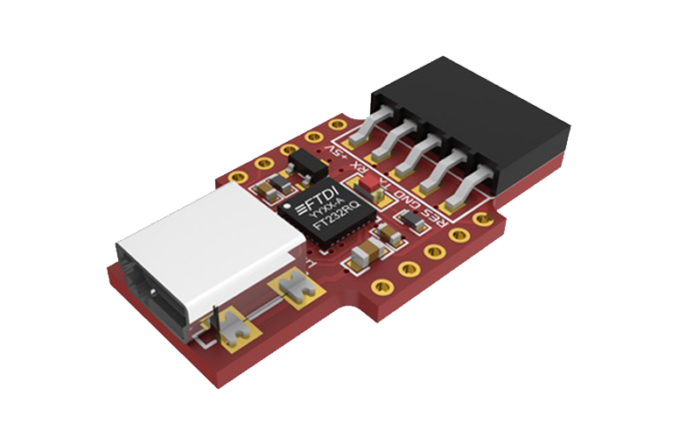

The microUSB Programming Adaptor uUSB-PA5-II is a USB to Serial-TTL UART bridge converter which is simple, cost-effective, tiny and easy to use. It uses a mini-B type USB connector to connect to your PC. The uUSB-PA5-II is based on the SiLabs CP2104 USB to UART Bridge IC from Silicon Labs. It provides the user with multi-baud rate serial data up to 3M baud rate, and access to additional signals such as flow control in a convenient 10-pin 2.54mm (0.1″) pitch Dual-In-Line package.
The main 5-pin interface is a standard 2.54mm (0.1″) pitch female header, designed to connect directly to a majority of the 4D Systems modules. RX and TX signals are both 3.3V and 5V tolerant. The uUSB-PA5-II is ideal for prototype or production.
Features and Benefits
Features:
- USB 2.0 compliant, full speed, 12 Mbps maximum speed. Suspend is supported.
- Hardware or Xon/Xoff handshaking is supported, with speeds ranging from 300bps to 2Mbps.
- UART supports 5, 6, 7, or 8 data bits, 1, 1.5, or 2 stop bits, and odd, even, mark, space, and no parity.
- Power on reset circuit
- Virtual COM port drivers allow operation with existing COM port PC applications.
- USB powered
- Traffic/Operation LED indicates board status
- Additional flow control and features are available for the user to solder, using standard 2.54mm (0.1″) pitch through holes along each side of the PCB.
Overview and Connectivity
The microUSB Programming Adaptor uUSB-PA5-II is a USB to Serial-TTL UART bridge converter which is simple, cost-effective, tiny and easy to use. It uses a mini-B type USB connector to connect to your PC. The uUSB-PA5-II is based on the SiLabs CP2104 USB to UART Bridge IC from Silicon Labs. It provides the user with multi-baud rate serial data up to 3M baud rate, and access to additional signals such as flow control in a convenient 10-pin 2.54mm (0.1″) pitch Dual-In-Line package.
The main 5-pin interface is a standard 2.54mm (0.1″) pitch female header, designed to connect directly to a majority of the 4D Systems modules. RX and TX signals are both 3.3V and 5V tolerant. The uUSB-PA5-II is ideal for prototype or production.
Features:
- USB 2.0 compliant, full speed, 12 Mbps maximum speed. Suspend is supported.
- Hardware or Xon/Xoff handshaking is supported, with speeds ranging from 300bps to 2Mbps.
- UART supports 5, 6, 7, or 8 data bits, 1, 1.5, or 2 stop bits, and odd, even, mark, space, and no parity.
- Power on reset circuit
- Virtual COM port drivers allow operation with existing COM port PC applications.
- USB powered
- Traffic/Operation LED indicates board status
- Additional flow control and features are available for the user to solder, using standard 2.54mm (0.1″) pitch through holes along each side of the PCB.
Product Availability Statement
