20+ Years
Embedded display engineering, end to end
Full Lifecycle Support
Products supported across full lifecycles
Field-Proven
Global deployments in demanding environments
Production-ready
Low-risk interfaces built to work the first time
Display Size
4.95 / 125.73 mm
Resolution
480 × 854 pixels
Brightness
~500 cd/m²
Processor
DIABLO16
LCD Touch Type
Capacitive Touch
Operating Temp
-20°C to +70°C
Storage Temp
-20°C to +80°C
Viewing Area
62.56 x 110.53 mm
4Discovery 5.0"
Volume Discount
Available Models & Details
4Discovery 5.0"
4Discovery-50
4Discovery-50

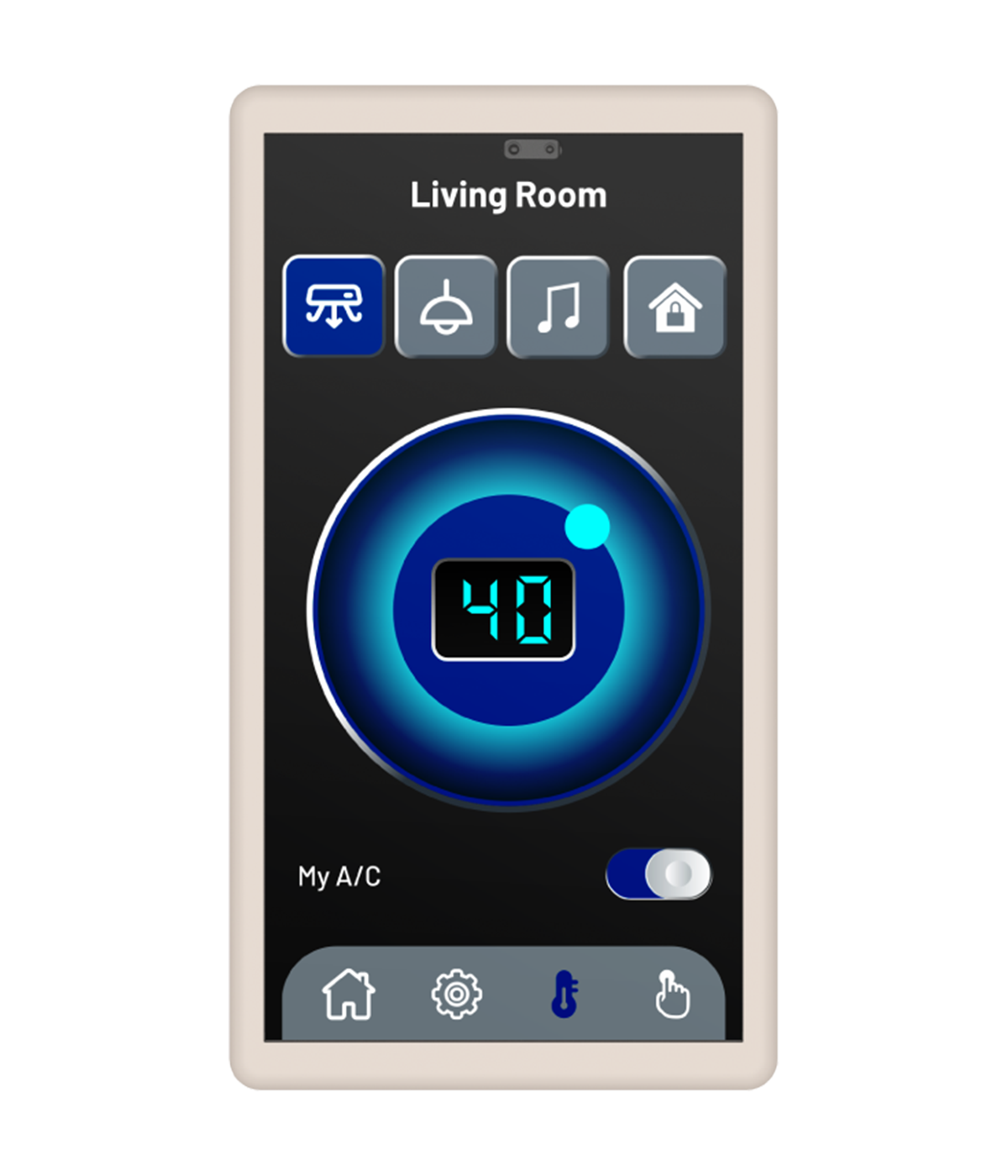

The 4Discovery-50 is a 5.0″ intelligent display module with 480 × 854 resolution, 500 cd/m² brightness, and a capacitive touch panel. It features a built-in proximity sensor, a DIABLO-16 processor, a 62.56 × 110.53 mm viewing area, and overall dimensions of 76.2 × 139.4 × 24.8 mm.
| Features | 4Discovery-50 | 4Discovery-50W |
| Size (inches) | 5.0 inches | 5.0 inches |
| Processor | DIABLO-16 | DIABLO-16 |
| Resolution | 480 × 854 pixels | 480 × 854 pixels |
| Brightness (cd/m²) | 500 cd/m² | 500 cd/m² |
| Touch | Capacitive Touch | Capacitive Touch |
| WiFi + Bluetooth | No | Yes |
| Viewing Area (mm) | 62.56 x 110.53 | 62.56 x 110.53 |
| Dimensions (mm) | 76.2 x 139.4 x 24.8 | 76.2 x 139.4 x 24.8 |
4Discovery-50W
4Discovery-50W

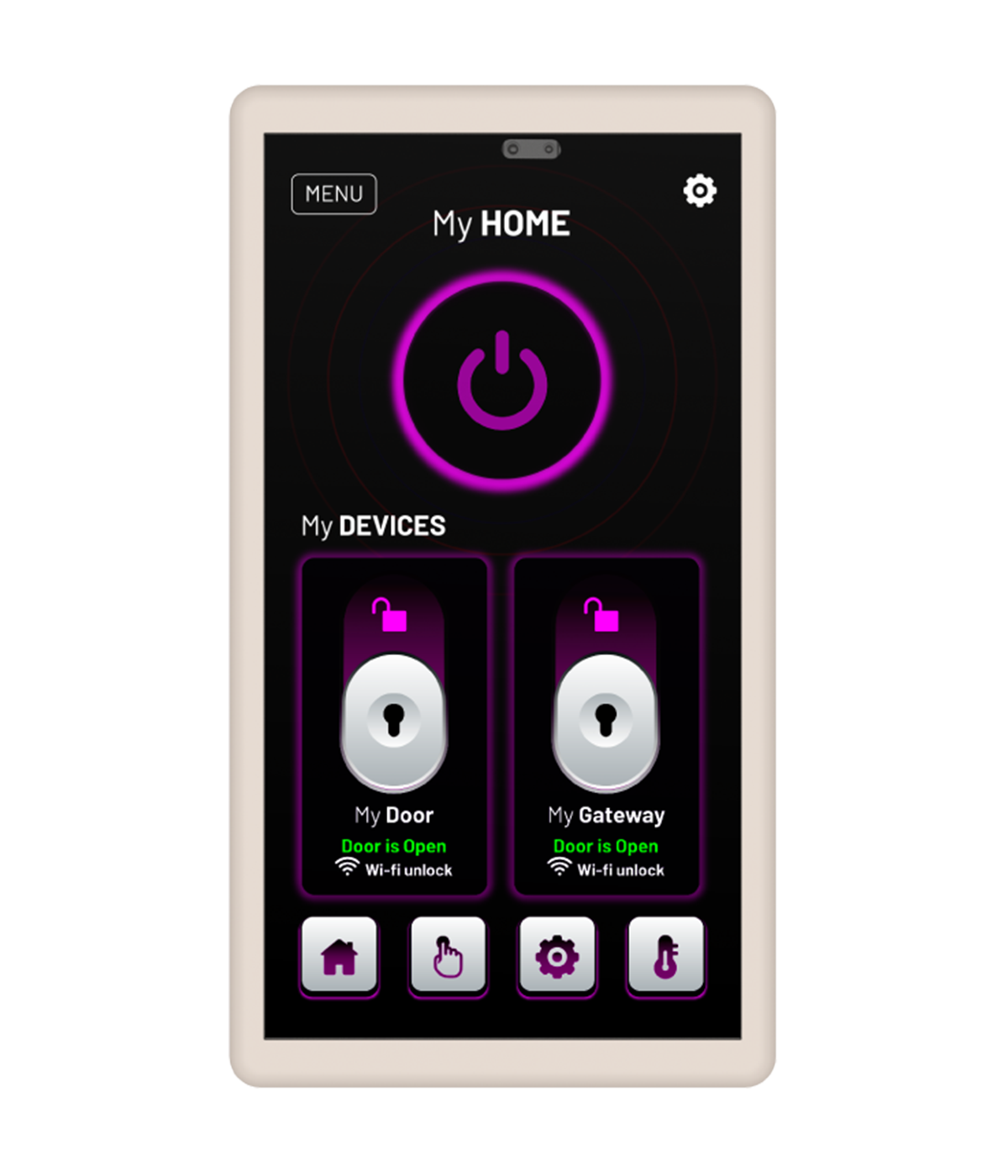

The 4Discovery-50W is a 5.0″ intelligent display module with 480 × 854 resolution, 500 cd/m² brightness, and a capacitive touch panel. It features a built-in proximity sensor, integrated WiFi + Bluetooth connectivity, a DIABLO-16 processor, a 62.56 × 110.53 mm viewing area, and overall dimensions of 76.2 × 139.4 × 24.8 mm.
| Features | 4Discovery-50 | 4Discovery-50W |
| Size (inches) | 5.0 inches | 5.0 inches |
| Processor | DIABLO-16 | DIABLO-16 |
| Resolution | 480 × 854 pixels | 480 × 854 pixels |
| Brightness (cd/m²) | 500 cd/m² | 500 cd/m² |
| Touch | Capacitive Touch | Capacitive Touch |
| WiFi + Bluetooth | No | Yes |
| Viewing Area (mm) | 62.56 x 110.53 | 62.56 x 110.53 |
| Dimensions (mm) | 76.2 x 139.4 x 24.8 | 76.2 x 139.4 x 24.8 |
4Discovery-50
The 4Discovery-50 is a 5.0″ intelligent display module with 480 × 854 resolution, 500 cd/m² brightness, and a capacitive touch panel. It features a built-in proximity sensor, a DIABLO-16 processor, a 62.56 × 110.53 mm viewing area, and overall dimensions of 76.2 × 139.4 × 24.8 mm.
| Features | 4Discovery-50 | 4Discovery-50W |
| Size (inches) | 5.0 inches | 5.0 inches |
| Processor | DIABLO-16 | DIABLO-16 |
| Resolution | 480 × 854 pixels | 480 × 854 pixels |
| Brightness (cd/m²) | 500 cd/m² | 500 cd/m² |
| Touch | Capacitive Touch | Capacitive Touch |
| WiFi + Bluetooth | No | Yes |
| Viewing Area (mm) | 62.56 x 110.53 | 62.56 x 110.53 |
| Dimensions (mm) | 76.2 x 139.4 x 24.8 | 76.2 x 139.4 x 24.8 |
4Discovery-50W
The 4Discovery-50W is a 5.0″ intelligent display module with 480 × 854 resolution, 500 cd/m² brightness, and a capacitive touch panel. It features a built-in proximity sensor, integrated WiFi + Bluetooth connectivity, a DIABLO-16 processor, a 62.56 × 110.53 mm viewing area, and overall dimensions of 76.2 × 139.4 × 24.8 mm.
| Features | 4Discovery-50 | 4Discovery-50W |
| Size (inches) | 5.0 inches | 5.0 inches |
| Processor | DIABLO-16 | DIABLO-16 |
| Resolution | 480 × 854 pixels | 480 × 854 pixels |
| Brightness (cd/m²) | 500 cd/m² | 500 cd/m² |
| Touch | Capacitive Touch | Capacitive Touch |
| WiFi + Bluetooth | No | Yes |
| Viewing Area (mm) | 62.56 x 110.53 | 62.56 x 110.53 |
| Dimensions (mm) | 76.2 x 139.4 x 24.8 | 76.2 x 139.4 x 24.8 |
Product Availability Statement
4Discovery Accessories
Frequently Asked Questions
Find quick answers about our display modules, embedded integration, customization capabilities, and system compatibility.
How do I choose the right display module for my project?
Start by identifying the demands of your product environment: required screen size, touch capability, operating conditions and UI complexity. Our consistent form-factor families allow you to select a module that fits your constraints today and upgrade performance later without redesigning your enclosure or PCB. Our documentation hub provides comparison tables to assist selection.
What is the difference between a smart display and a host-driven display?
Smart displays include an onboard processor that handles graphics, widgets, UI logic and drawing commands internally. This reduces load on your host MCU, simplifies code and often shortens development time dramatically. Host-driven modules require the host MCU to manage everything, which may be appropriate for minimal UIs but introduces more integration work.
Can I upgrade processors without changing my enclosure or PCB?
Yes. Our architecture is deliberately designed around footprint consistency. Most display families maintain identical mechanical and electrical footprints across multiple processor types, enabling generation-to-generation performance improvements without mechanical redesign.
Do you offer non-touch and touch options?
Yes. Many display families provide variants for non-touch, resistive-touch and capacitive-touch configurations. Capacitive-touch variants are recommended for modern, responsive UI experiences.
