• 4.3", 800 x 480 pixel, high resolution, slim Intelligent Display Module with embedded DIABLO16 processor and Capacitive Touch Panel with Cover Lens Bezel.
  • Suitable for fast and easy integration of a full-colour HMI into any application or product.
  • Starter Kits available for first-time users.
  • Hardware interface boards for Arduino and Raspberry Pi also available.
  • See product description below for more details.
  • 3D Printable Enclosures available for Wall / Panel / Enclosure mounting. Check the download link in the downloads section.

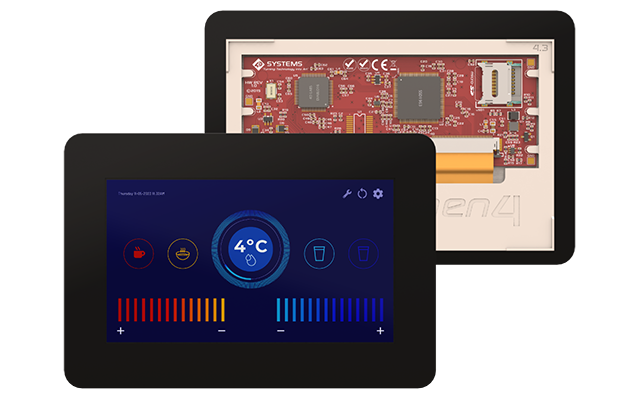

4.3″ gen4 Series Intelligent Display Module with DIABLO16 Graphics Controller

The gen4 4.3” Diablo16 Integrated Display Modules are part of the latest gen4 series of modules Designed and Manufactured by 4D Systems.

The gen4 series was designed specifically for ease of integration and use, with careful consideration for space requirements and functionality.

There are two resolution options with the 4.3″ modules, Standard Resolution (480×272) and High Resolution (800×480). Both resolution options have the same touchscreen options mentioned above. High-Resolution models feature -HR in their name. Both are mechanically identical, so Standard and High-Resolution models can be used interchangeably for mechanical mounting solutions.

These specific gen4 modules feature a 4.3” colour TFT LCD display, and come with options for Cover Lens Bezel (CLB), Resistive Touch and Capacitive Touch. They is powered by the well-known 4D Systems Diablo16 Graphics Processor, which offers an array of functionality and options for any Designer / Integrator / User.

The 4.3” Diablo16 Integrated Display Module features a TFT LCD Display, and is capable of Touch Detection, microSD memory Storage, GPIO and Communications, along with multiple millisecond resolution timers, and Audio Generation.

The gen4 Series is 100% compatible with the Workshop4 IDE and its 4 different development environments, providing the user with a wealth of options for programming and controlling their system.

The gen4 series of Integrated Display Modules feature a 30-pin ZIF socket, designed for a 30-pin FFC cable, for easy and simple connection to an application or mother board, or for connecting to accessory boards for a range of functionality advancements.

The gen4 series of modules have been designed to minimise the impact of display-related circuitry and provide a platform suitable for integration into a product. Application boards can sit flush on the back of the gen4 display module if required, as the display-related electronics sit inside the plastic mounting base, leaving the application board surface clear for User circuitry.

Models in this size:

  • gen4-uLCD-43D (non Touch, without Cover Lens Bezel)
  • gen4-uLCD-43DT (Resistive Touch, without Cover Lens Bezel)
  • gen4-uLCD-43D-CLB (non-Touch, Cover Lens Bezel)
  • gen4-uLCD-43DCT (Capacitive Touch)
  • gen4-uLCD-43DCT-CLB (Capacitive Touch, with Cover Lens Bezel)
  • gen4-uLCD-43D-SB (non Touch, without Cover Lens Bezel, Superbright Display)
  • gen4-uLCD-43DT-SB (Resistive Touch, without Cover Lens Bezel, Superbright Display)
  • gen4-uLCD-43D-CLB-SB (non-Touch, Cover Lens Bezel, Superbright Display)
  • gen4-uLCD-43DCT-SB (Capacitive Touch, Superbright Display)
  • gen4-uLCD-43DCT-CLB-SB (Capacitive Touch, Cover Lens Bezel, Superbright Display)
  • gen4-uLCD-43D-HR (High Resolution, non-Touch, without Cover Lens Bezel)
  • gen4-uLCD-43DT-HR (High Resolution, Resistive Touch, without Cover Lens Bezel)
  • gen4-uLCD-43DCT-HR (High Resolution, Capacitive Touch)
  • gen4-uLCD-43DCT-CLB-HR (High Resolution, Capacitive Touch, with Cover Lens Bezel)

Information about the display module

  • Powerful 4.3″ Intelligent LCD-TFT display module powered by DIABLO16.
  • 800×480 (High Resolution), RGB 65K true-to-life colours, TFT Screen with non-touch (D), integrated 4-wire Resistive Touch Panel (DT), or Capacitive Touch Panel (DCT). DCT is available with or without Cover Lens Bezel (CLB).
  • 6 banks of 32750 bytes of Flash memory for User Application Code and Data.
  • 32Kb of SRAM purely for the User.
  • 16 General Purpose I/O pins for user interfacing, which include 4 configurable Analog Inputs.
  • The GPIO is variously configurable for alternative functions such as:
    • 3x I2C channels available.
    • 1x SPI dedicated for SD Card and 3x configurable SPI channels > available.
    • 1x dedicated and 3x configurable TTL Serial comm ports > available.
    • Up to 6 GPIO can be used as Pin Counters.
    • Up to 6 GPIO for PWM (simple and Servo).
    • Up to 10 GPIO for Pulse Output.
    • Up to 14 GPIO can be configured for Quadrature Encoder Inputs (2 > channels).
  • 30pin FPC connection, for all signals, power, communications, GPIO and programming.
  • Latch-type micro-SD memory card connector for multimedia storage and data logging purposes.
  • DOS-compatible file access (FAT16 format) as well as low-level access to card memory.
  • Dedicated PWM Audio pin for sound generation, for an external amplifier.
  • Display full-colour images, animations, icons, and video clips.
  • Supports all available Windows fonts.
  • 4.0V to 5.5V range operation (single supply).
  • 4x mounting tabs with 4.0mm holes for mechanical mounting using M4 screws (D/DT/DCT Models only).
  • 3M Adhesive around the perimeter of CLB for mounting the DCT-CLB model
  • RoHS, REACH, and CE compliant.
  • PCB is UL 94V-0 Flammability Rated.
  • Module dimensions:
    • (D): 127.6 x 69.3 x 6.7mm
    • (D-CLB): 123.0 x 84.5 x 7.4mm
    • (DT): 127.6 x 69.3 x 7.8mm
    • (DCT): 127.6 x 69.3 x 8.1mm
    • (DCT-CLB): 123.0 x 84.5 x 8.4mm

The gen4-uLCD-43DCT-CLB-HR includes the following items:

  • gen4-uLCD-43DCT-CLB-HR Intelligent Display Module
  • gen4-IB Interface Board
  • 30-way 150mm FFC Cable
  • Quick Start Guide is Available as a Download.

If you are a first-time user and just beginning your development, we strongly recommend purchasing a Starter Kit of this same model as it includes additional items that allow you to get started with your development immediately.

The Starter Kit part number is SK-gen4-43DCT-CLB-HR


Diagonal Display Size INCHES





540 cd/m2

Backlight LEDs



Capacitive w/ Cover Lens Bezel



Operating Ambient Temperature

-20 to 70°C

Storage Temperature

-30°C to +80°C


30 way FPC

Display Viewing Area (mm)

95.04 x 53.86

Module Dimensions (mm)

123.00 x 84.50 x 8.40



Country of origin


CCCN / tarif code


ECCN export control code






Package Dimensions L x W x H (mm)

167 x 126 x 41

Product Weight (g


Weight with Packaging (g




CE Mark


Supply Voltage

5.0V DC

Supply Current

315 mA

Frame Rate

9.3 fps



Processor Capability

1220K Pixels / second

SD Card Slot

Yes – RAW or FAT16 Support. SPI Compatible microSD Cards Only


6 banks of 32KB




3 x Channels


16 x GPIO


3 channels available

Codeless Programming



4D Workshop4 IDE

Serial Speed

300 to 2187500 baud

Serial Interfaces

1 x dedicated and 3 x configurable

8-bit Parallel Transfer


Viewing Angle

Standard Viewing Angle


Viewing Area: 95.04 x 53.86 mm

Module Width: 123.00 mm

Module Height: 84.50 mm

Module Depth: 8.40 mm

Module Weight: 101.7 g


Workshop4 is a comprehensive software IDE for Microsoft Windows that provides an integrated software development platform for all of the 4D family of processors and modules. The IDE combines the Editor, Compiler, Linker and Downloader to develop complete 4DGL application code.

All user application code is developed within the Workshop4 IDE.


Workshop4 includes four development environments for the user to choose based on application requirements or even user skill level.


Make complex widget design, simple.

Smart Widgets Editor is a powerful utility which enables the generation of Smart Widgets.

  • Users can create complex widgets with up to six layers, including the layer for the base image. The order of the layers can be arranged as desired.
  • Each layer can contain one or more images arranged in sequence that can be manipulated in a variety of ways. Image manipulation options include horizontal motion, vertical motion, and angular motion. Additionally, the transparency of a layer can be set.
  • Two or more layers can be linked to produce synchronized movements of images. This enables the generation of complex widgets with multiple moving parts. Clockwork feature is also supported. This enables users to quickly generate clock widgets.
  • Each layer can have a numeric part which can display numbers in various fonts and formats. Alternatively, the numeric part can be a fixed sequence of text.
  • The output frames can be utilized using any of the supported Workshop4 environments.


Genie Magic is an extension to ViSi-Genie, which is available in Workshop4 PRO. Genie Magic allows the User to add 4DGL code to various points in the ViSi-Genie backend code, which allows Users to take full advantage of the power of 4DGL, while retaining the speed and convenience of ViSi-Genie and its defined communication protocol.

Genie Magic allows you to enter 4DGL code in the form of Events, Code and Objects, along with various touch related additions too, giving you to the power to achieve advanced GUI’s in ViSi-Genie without having to write the full code yourself.

Genie Magic is fully supported by the genieArduino and geniePi libraries, making communication with an Arduino or Raspberry Pi host even more powerful.

When using Genie Magic in combination with the Smart Widget Editor, it is possible to use the Smart Widgets Editor tool and Smart Widgets to create other graphical user interface elements such as:

  • Dropdown Menu

  • Side Menu

  • ‘Carousel Slider’

  • List Box

  • Dock Menu
  • Quarter-Rotary Menu

  • Fading Slide-To-Unlock Button

  • Spectrum With Transparency

  • And Many Others



Workshop4 is a Windows-only product. It is compatible with Windows 8 through to Windows 11.

Note some older OS such as ME, Vista, XP and 7 have not been tested for some time and are not supported by Microsoft anymore; however, they may still work.
Legacy support updates for the older OS may not be possible, depending on what issues are found. For best results, run a current Windows OS.

It is possible to run Workshop4 under a VM on Linux or Mac. However, it is up to the User to set this up.
