Display Size
10.4 / 264.16 mm
Resolution
1024 × 100 pixels
Brightness
~950 cd/m²
Processor
DIABLO16
LCD Touch Type
Non-Touch
Operating Temp
-10°C to +60°C
Storage Temp
-20°C to +70°C
Viewing Area
264.19 x 25.80 mm
microLCD 10.4"
Volume Discount
Available Models & Details
microLCD 10.4"
uLCD-104D
uLCD-104D

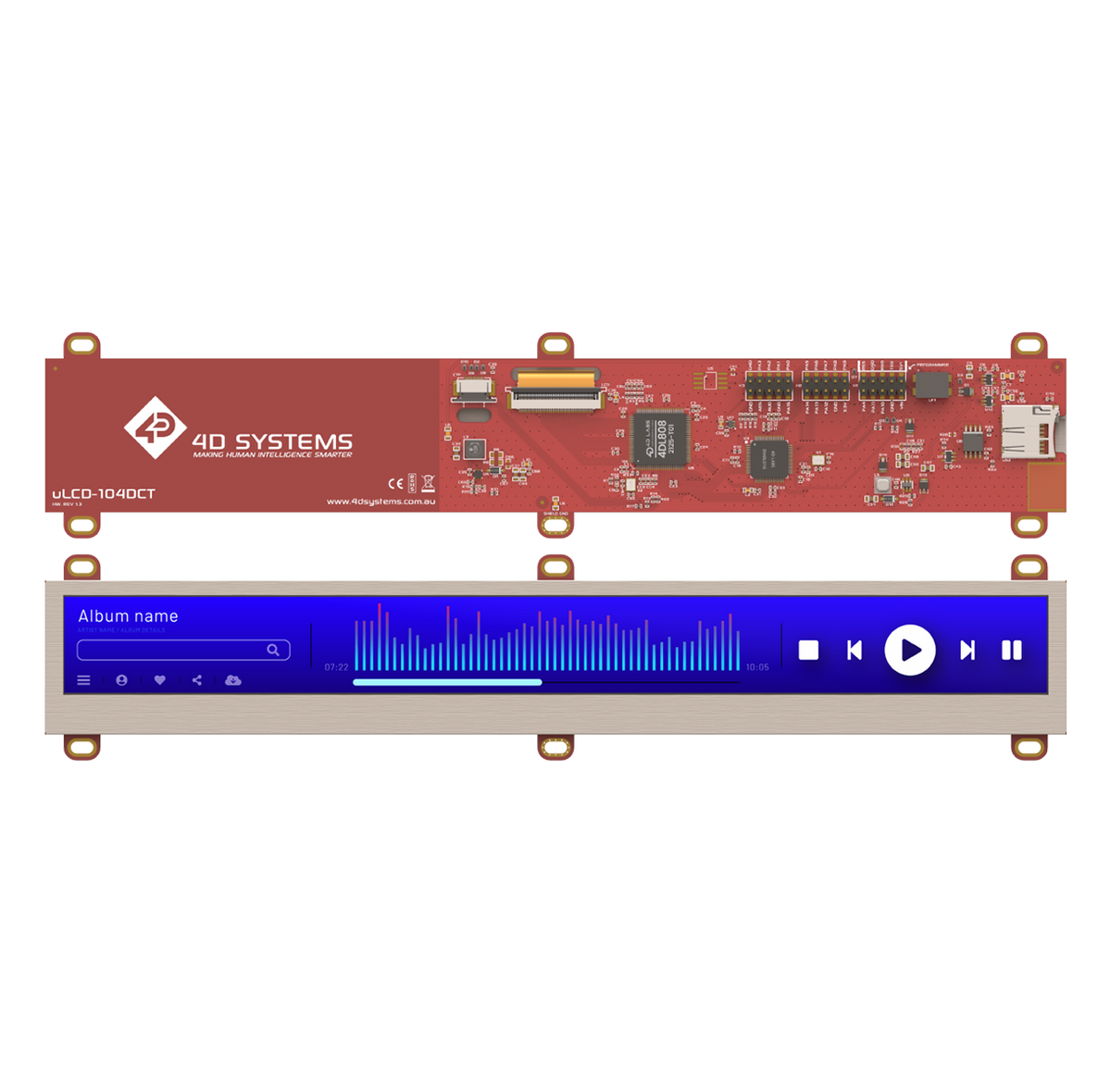

The uLCD-104D is a 10.40″ display module with 1024 × 100 resolution, 950 cd/m² brightness, and a non-touch panel without a cover lens bezel. It features a DIABLO processor and an SD card slot for external memory.
| Features | uLCD-104D | uLCD-104DCT |
| Size (inches) | 10.4 inches | 10.4 inches |
| Processor | DIABLO16 | DIABLO16 |
| Resolution | 1024 × 100 pixels | 1024 × 100 pixels |
| Brightness (cd/m²) | 950 cd/m² | 855 cd/m² |
| Touch | Non-Touch | Capacitive Touch |
| Cover Lens Bezel | No | No |
| Viewing Area (mm) | 264.19 x 25.80 mm | 264.19 x 25.80 mm |
uLCD-104DCT
uLCD-104DCT

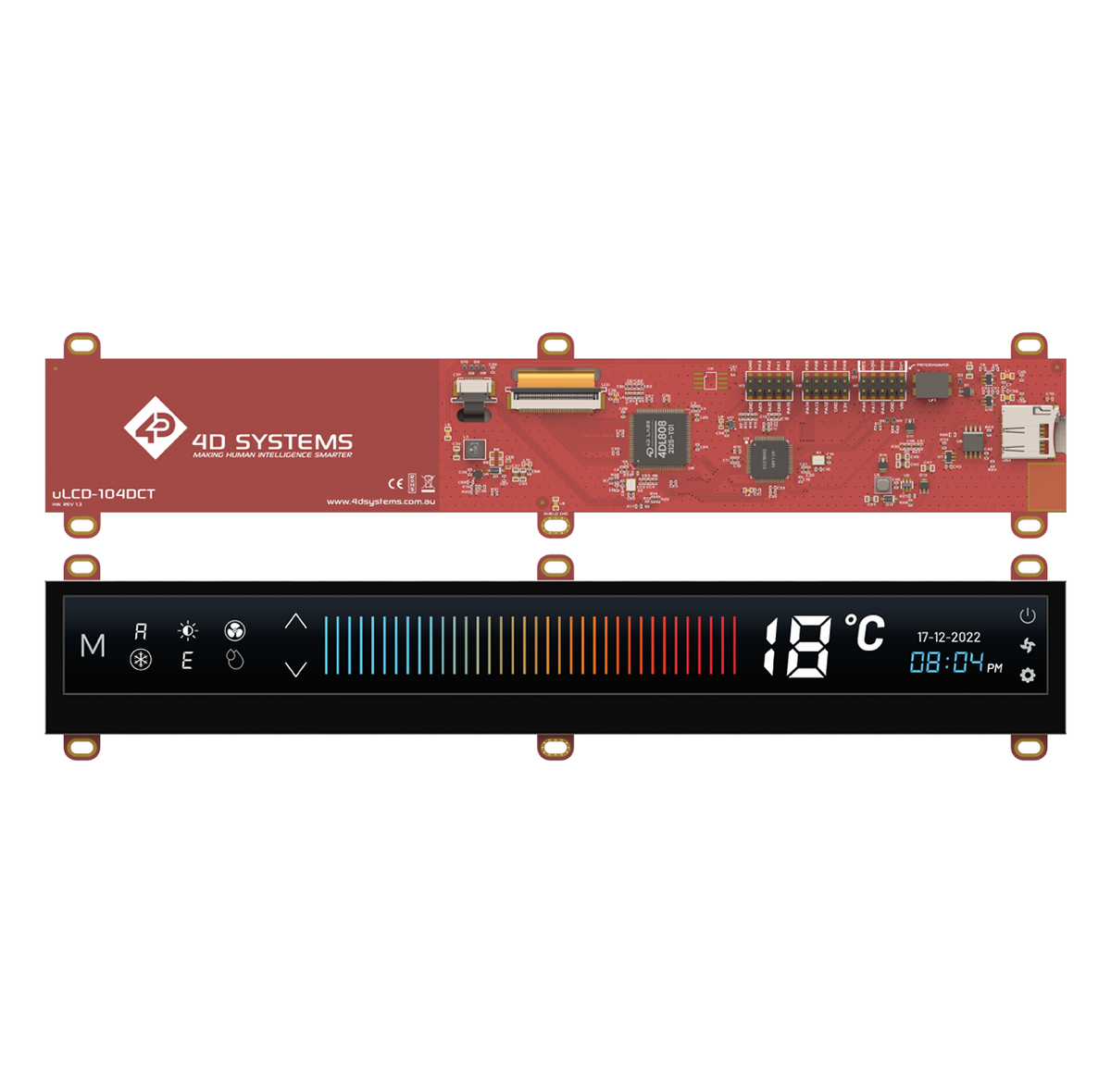

The uLCD-104DCT is a 10.40″ display module with 1024 × 100 resolution, 855 cd/m² brightness, and a capacitive touch panel without a cover lens bezel. It features a DIABLO processor and an SD card slot for external memory.
| Features | uLCD-104D | uLCD-104DCT |
| Size (inches) | 10.4 inches | 10.4 inches |
| Processor | DIABLO16 | DIABLO16 |
| Resolution | 1024 × 100 pixels | 1024 × 100 pixels |
| Brightness (cd/m²) | 950 cd/m² | 855 cd/m² |
| Touch | Non-Touch | Capacitive Touch |
| Cover Lens Bezel | No | No |
| Viewing Area (mm) | 264.19 x 25.80 mm | 264.19 x 25.80 mm |
uLCD-104D
The uLCD-104D is a 10.40″ display module with 1024 × 100 resolution, 950 cd/m² brightness, and a non-touch panel without a cover lens bezel. It features a DIABLO processor and an SD card slot for external memory.
| Features | uLCD-104D | uLCD-104DCT |
| Size (inches) | 10.4 inches | 10.4 inches |
| Processor | DIABLO16 | DIABLO16 |
| Resolution | 1024 × 100 pixels | 1024 × 100 pixels |
| Brightness (cd/m²) | 950 cd/m² | 855 cd/m² |
| Touch | Non-Touch | Capacitive Touch |
| Cover Lens Bezel | No | No |
| Viewing Area (mm) | 264.19 x 25.80 mm | 264.19 x 25.80 mm |
uLCD-104DCT
The uLCD-104DCT is a 10.40″ display module with 1024 × 100 resolution, 855 cd/m² brightness, and a capacitive touch panel without a cover lens bezel. It features a DIABLO processor and an SD card slot for external memory.
| Features | uLCD-104D | uLCD-104DCT |
| Size (inches) | 10.4 inches | 10.4 inches |
| Processor | DIABLO16 | DIABLO16 |
| Resolution | 1024 × 100 pixels | 1024 × 100 pixels |
| Brightness (cd/m²) | 950 cd/m² | 855 cd/m² |
| Touch | Non-Touch | Capacitive Touch |
| Cover Lens Bezel | No | No |
| Viewing Area (mm) | 264.19 x 25.80 mm | 264.19 x 25.80 mm |
Product Availability Statement
microLCD Accessories
WORKSHOP4 IDE
Tailored Development for 4D Processors and Modules
Workshop4 IDE is a comprehensive software development environment specifically designed for the 4D family of processors and modules. Whether you are a seasoned developer or just starting out, Workshop4 provides the perfect platform tailored to your development needs. This versatile IDE supports all core development processes, including code writing, compiling, linking, and transferring code to your target device.
Workshop4 IDE let you choose from four distinct environments—Designer , ViSi, ViSi-Genie and Serial—each catering to different development preferences and project specifics. This flexibility allows developers to select the most suitable environment for their tasks.
Workshop4 IDE is your go-to development companion in the 4D ecosystem, simplifying complex tasks and enhancing productivity through its user-friendly and versatile design. Whether coding manually or designing visually, Workshop4 elevates your development experience to new heights.
Frequently Asked Questions
Find quick answers about our display modules, embedded integration, customization capabilities, and system compatibility.
How do I choose the right display module for my project?
Start by identifying the demands of your product environment: required screen size, touch capability, operating conditions and UI complexity. Our consistent form-factor families allow you to select a module that fits your constraints today and upgrade performance later without redesigning your enclosure or PCB. Our documentation hub provides comparison tables to assist selection.
What is the difference between a smart display and a host-driven display?
Smart displays include an onboard processor that handles graphics, widgets, UI logic and drawing commands internally. This reduces load on your host MCU, simplifies code and often shortens development time dramatically. Host-driven modules require the host MCU to manage everything, which may be appropriate for minimal UIs but introduces more integration work.
Can I upgrade processors without changing my enclosure or PCB?
Yes. Our architecture is deliberately designed around footprint consistency. Most display families maintain identical mechanical and electrical footprints across multiple processor types, enabling generation-to-generation performance improvements without mechanical redesign.
Do you offer non-touch and touch options?
Yes. Many display families provide variants for non-touch, resistive-touch and capacitive-touch configurations. Capacitive-touch variants are recommended for modern, responsive UI experiences.
